Compass
>>
Wiring Diagram - COMPASS -
Wiring Diagram - COMPASS -

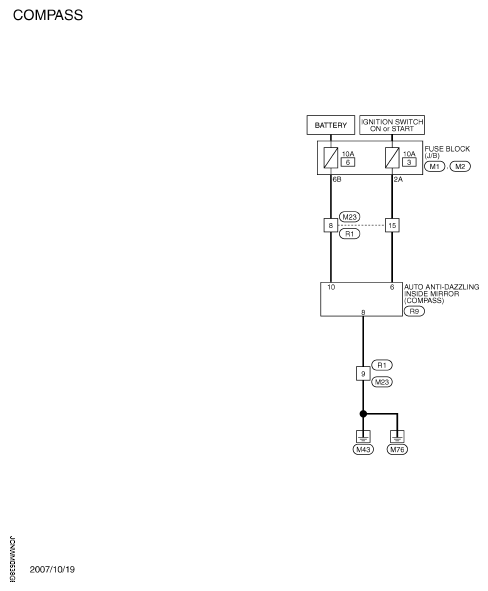

Fig 1: Compass Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

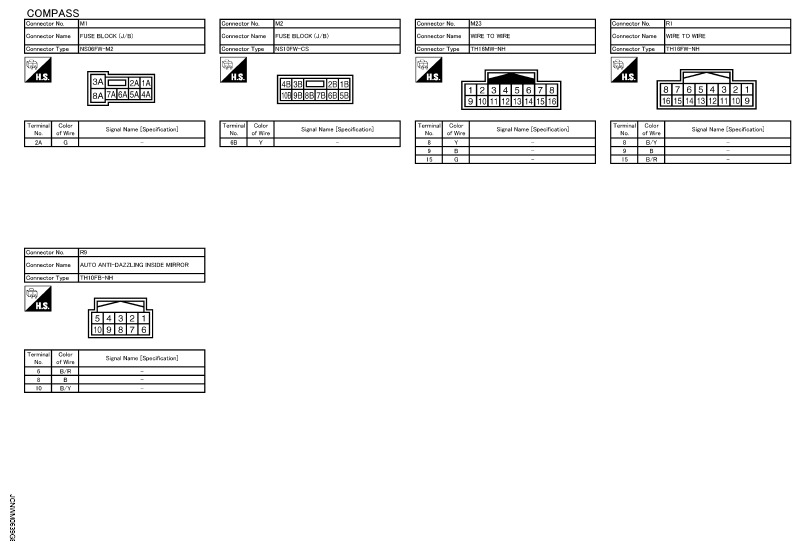

Fig 2: Compass Connectors Terminals Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
