Exploded View

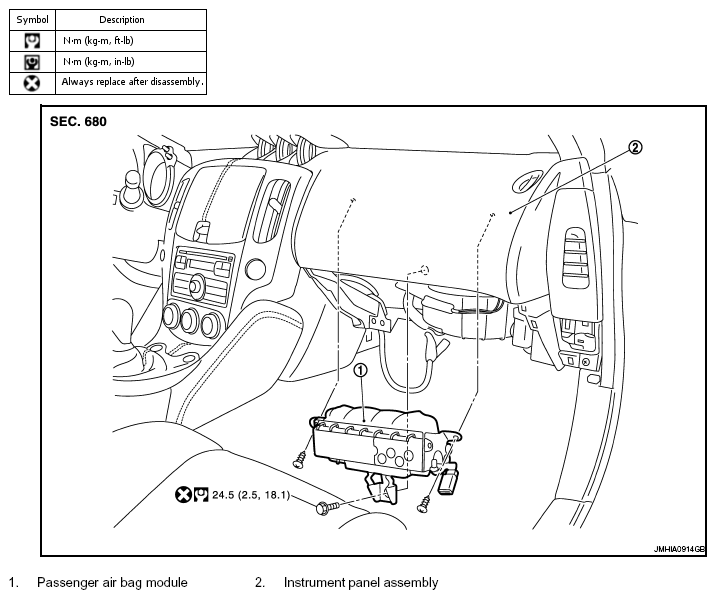

Fig 1: Exploded View Of Front Passenger Air Bag Module With Torque Specifications

G06052926

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
