Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove transmission assembly from the engine. Refer to "WITHOUT S-MODE : REMOVAL AND INSTALLATION " (Without S-MODE) or "WITH S-MODE : REMOVAL AND INSTALLATION " (With S-MODE).
  2. Remove mounting bolt (<==).

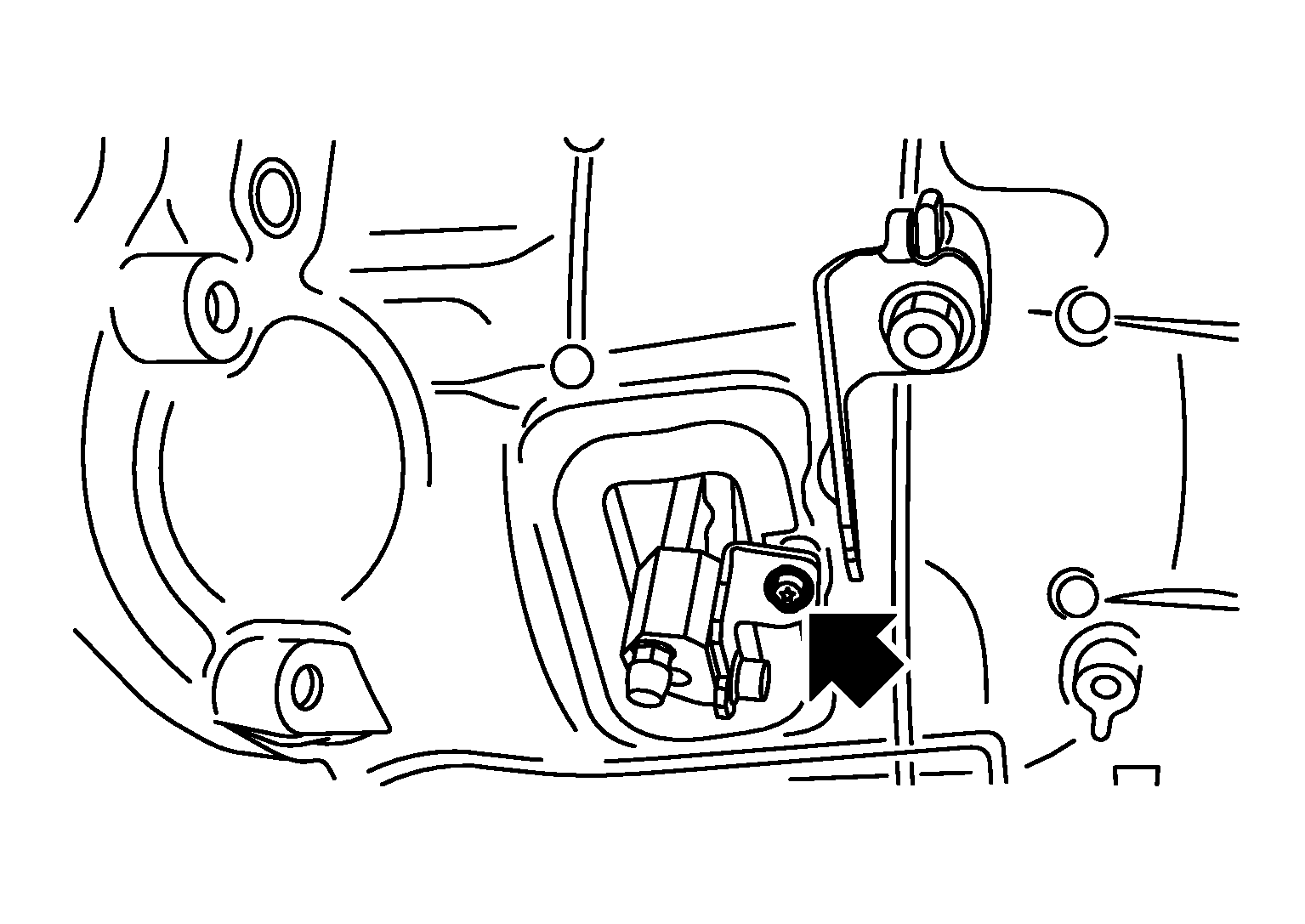

    Fig 1: Locating Mounting Bolt
    G05224230Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Pull up the lock pin of the CSC body.

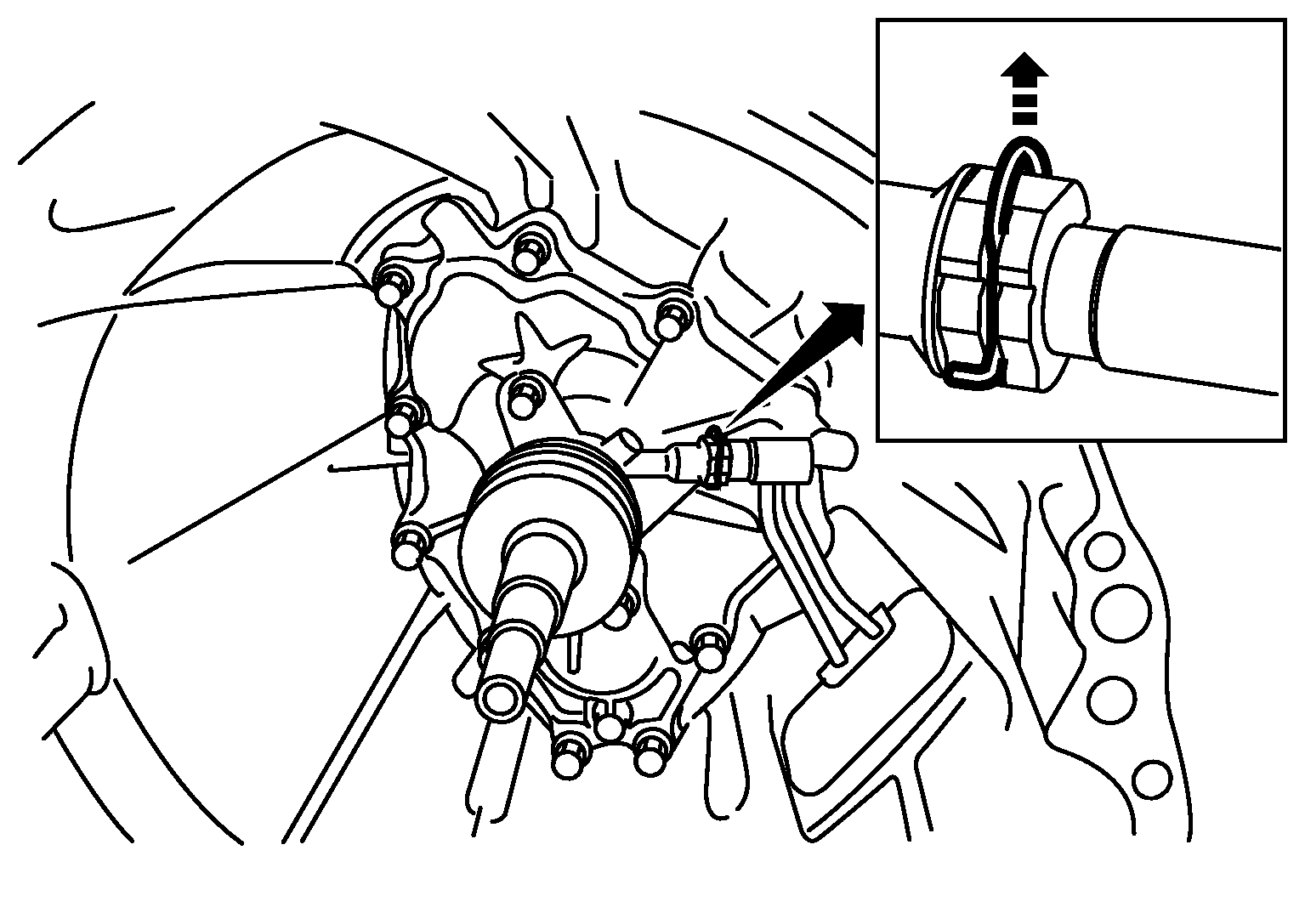

    Fig 2: Identifying Lock Pin
    G05224231Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Pull out the CSC tube (1) from the CSC body (2).
  5. Remove CSC tube and dust cover from transmission case.
  6. Remove air bleeder valve and bracket from CSC tube.
    Fig 3: Identifying Air Bleeder Valve And Bracket
    G05224232Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove CSC body from transmission case.
    Fig 4: Locating CSC Body
    G05224233Courtesy of NISSAN MOTOR CO., U.S.A.
