Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install CSC body to transmission case and then tighten mounting bolts (<==) to the specified torque.
CAUTION:
- Never reuse CSC body.
- Never insert and operate CSC body because piston and stopper of CSC body components may fall off.

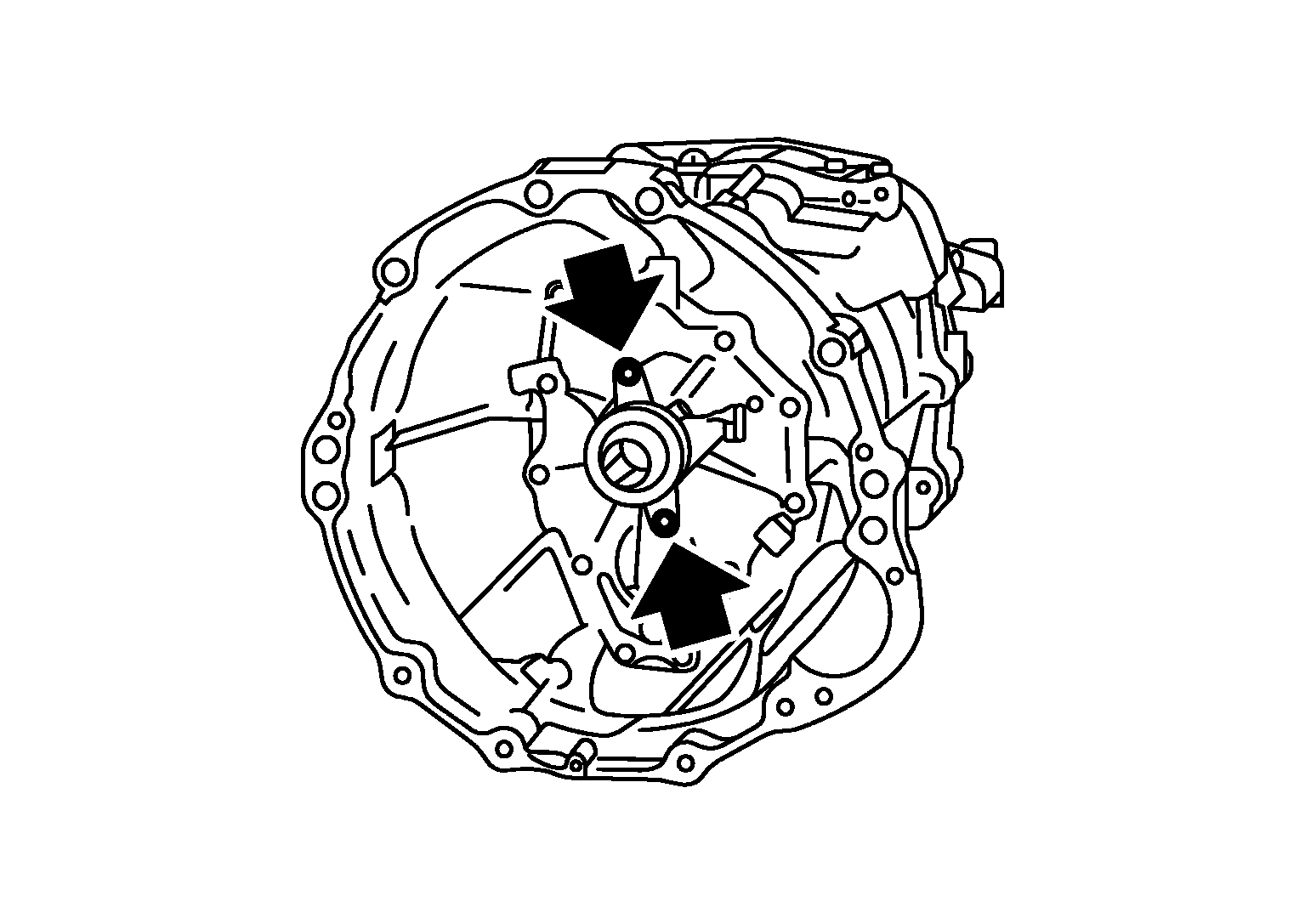

  Fig 1: Locating CSC Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install dust cover to transmission case.

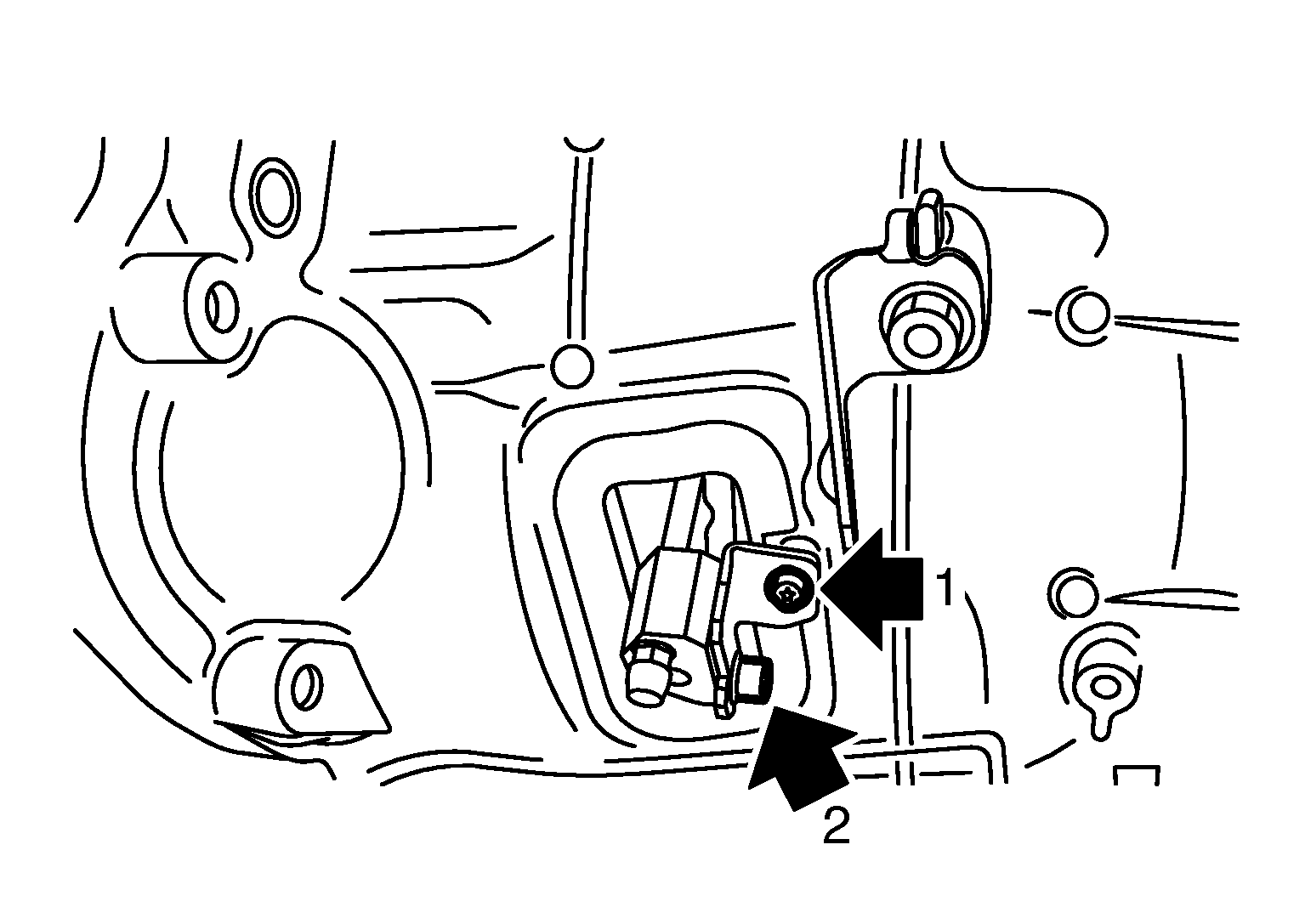

Fig 2: Identifying Dust Cover
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful with the orientation of dust cover.
Insert CSC tube to dust cover.
CAUTION:
- Never reuse CSC tube.
- Never damage O-ring of CSC tube.
Press down the lock pin of the CSC body.

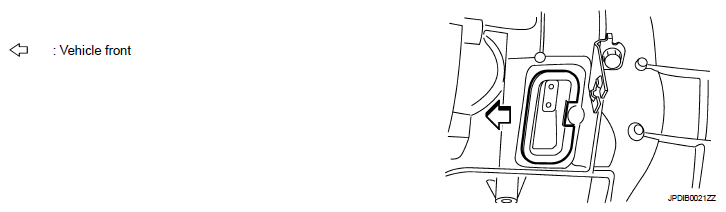

Fig 3: Identifying Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert the CSC tube (1) into the connector of the CSC body (2) until it clicks.

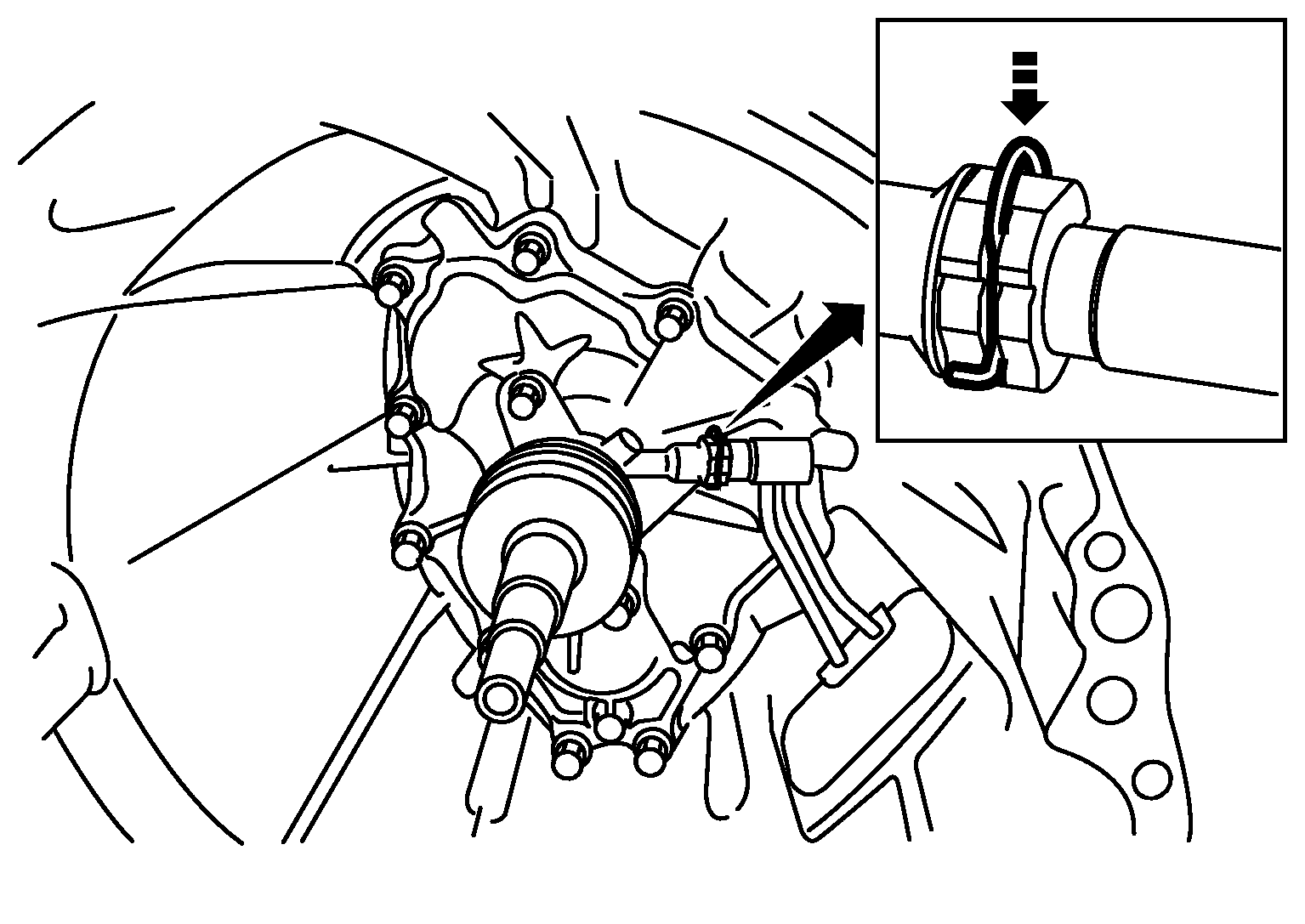

Fig 4: Identifying CSC Tube And CSC Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bracket and mounting bolts (<==) and then tighten mounting bolts to the specified torque in the numerical order as shown in the figure.

Fig 5: Locating Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Check that CSC tube's (B) and bracket (1) are fit tightly before tightening the mounting bolt (A).
- Tighten the mounting bolt within the range of bracket's mounting hole.
- After replacing the CSC tube, the mounting bolt (C) is still temporary tightening. Never forget tightening the mounting bolt.

  Fig 6: Identifying CSC Tube'S And Bracket
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install air bleeder valve to CSC tube and then tighten air bleeder valve to the specified torque.
Install transmission assembly to the engine. Refer to "WITHOUT S-MODE : REMOVAL AND INSTALLATION " (Without S-MODE) or "WITH S-MODE : REMOVAL AND INSTALLATION " (With S-MODE).
