Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Drain clutch fluid. Refer to "DRAINING ".
  2. Remove brake master cylinder cover. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove brake booster pressure sensor. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove mounting bolts (<==) and then remove reservoir tank assembly from the vehicle.
  5. Remove hose and clips from reservoir tank and master cylinder.
  6. Remove reservoir tank mounting bolts and washers and then remove bracket from reservoir tank.
  7. Remove clutch tube from master cylinder using a flare nut wrench.

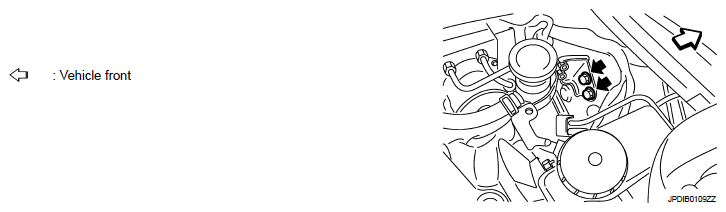

    Fig 1: Locating Mounting Bolts
    G06051843Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove snap pin and clevis pin from clevis and then separate clevis from clutch pedal.
  9. Remove master cylinder mounting nuts and then remove packing (1) and master cylinder assembly (2) from the vehicle.

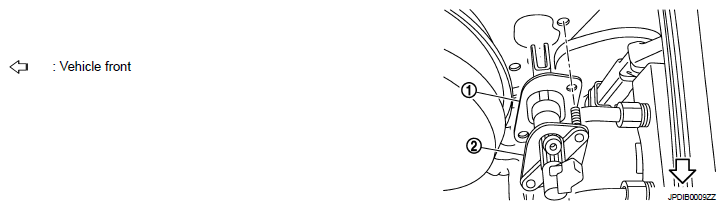

    Fig 2: Identifying Packing And Master Cylinder Assembly
    G06051844Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never damage packing, brake booster, and dash lower.
