Inspection and Adjustment: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Adjust clutch interlock switch (1) position so that clearance between stopper rubber (2) and thread end (A) of clutch interlock switch with clutch pedal depressed is clearance "C".

    Clearance "C" :  Refer to "CLUTCH PEDAL ".

  2. After adjusting clearance "C", tighten lock nut (3) to the specified torque. Refer to "EXPLODED VIEW ".

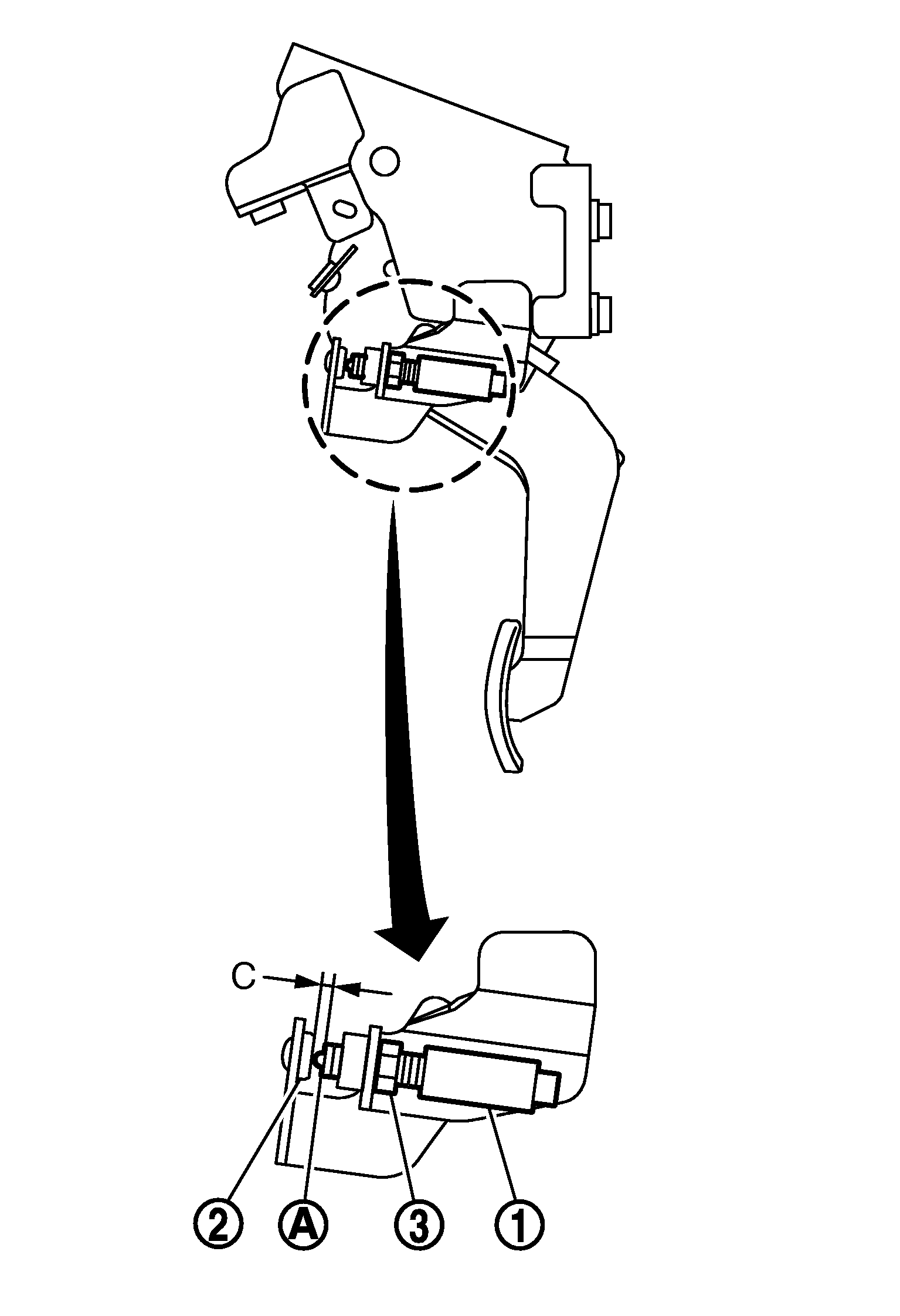

    Fig 1: Identifying Clutch Interlock Switch, Stopper Rubber And Thread End
    G05224213Courtesy of NISSAN MOTOR CO., U.S.A.
