WITH S-MODE : Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery cable from the negative terminal.
  2. Remove engine cover (front) and engine cover (rear). Refer to "REMOVAL AND INSTALLATION ".
  3. Remove control lever with the following procedure.
    1. Remove mounting bolt (<==) and then separate control lever from control rod.
      Fig 1: Locating Control Lever Mounting Bolt
      G05225796Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Remove console finisher assembly as shown in the figure. Refer to "REMOVAL AND INSTALLATION ".

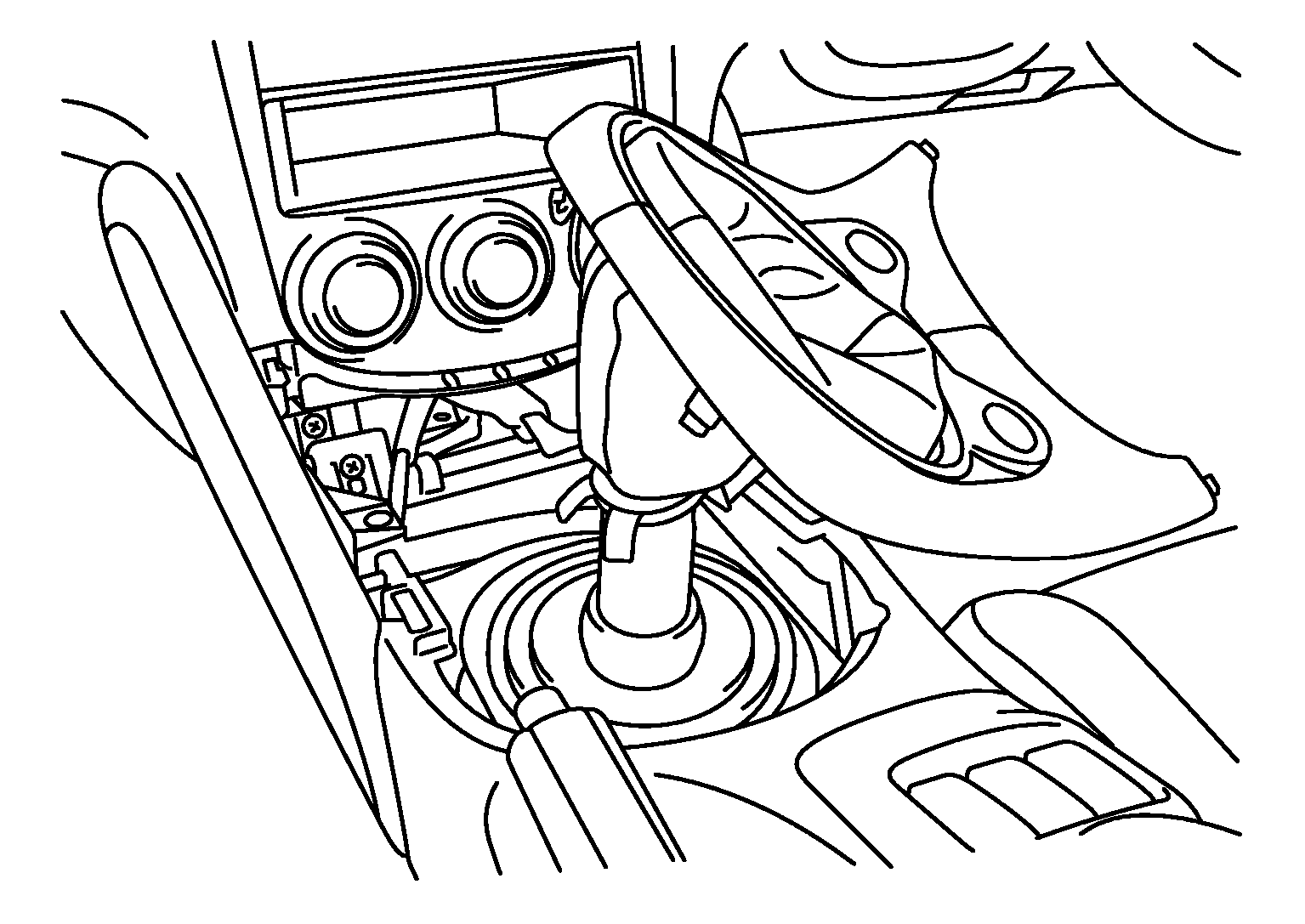

      Fig 2: Identifying Console Finisher Assembly
      G06051929Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Remove clips (<==) from hole cover.

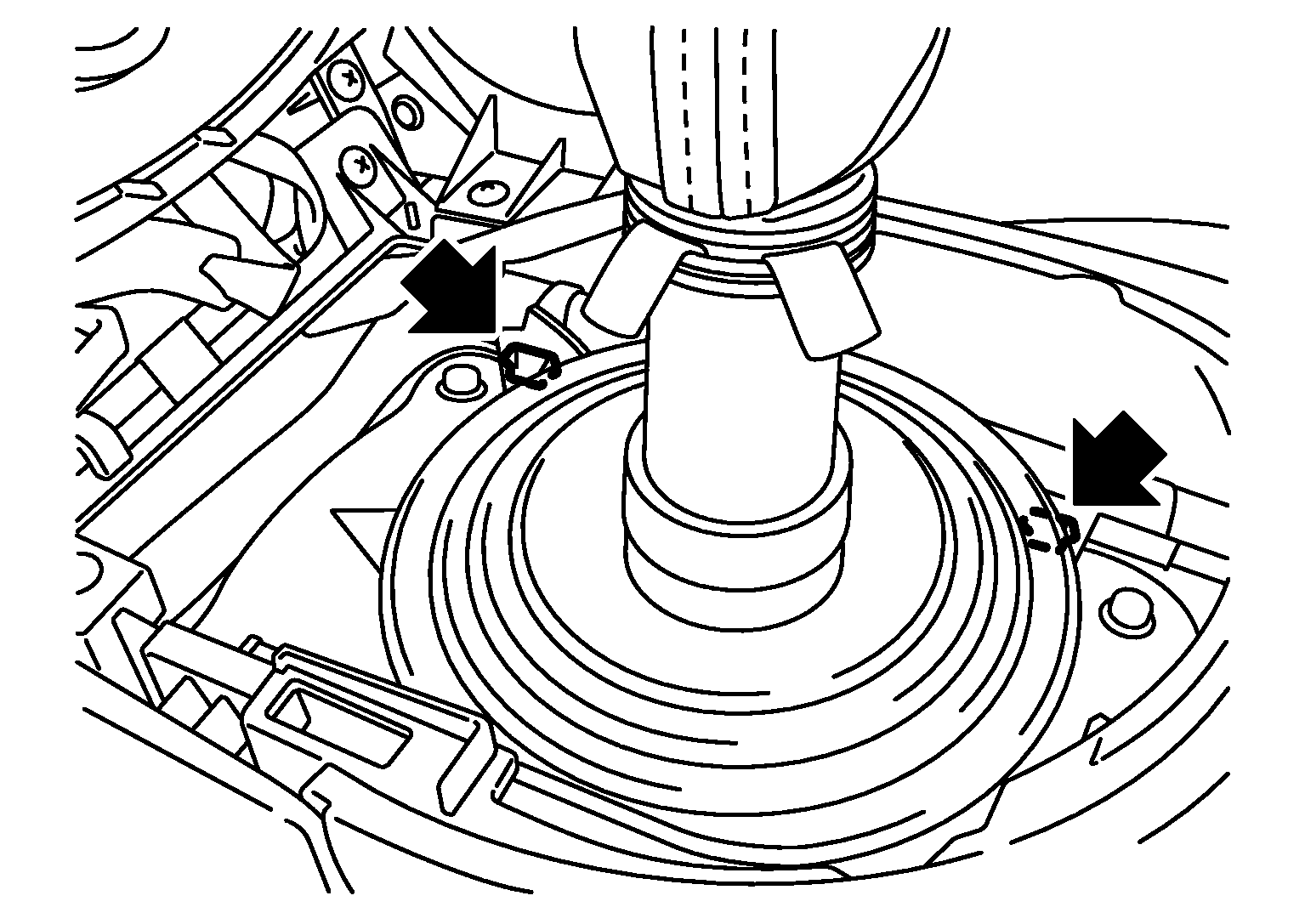

      Fig 3: Locating Hole Cover Clips
      G06051930Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Remove mounting bolts (<==) and then remove hole cover.
      CAUTION: Never damage center console assembly.
    5. Remove control lever boot B, hole insulator, and control lever boot A.

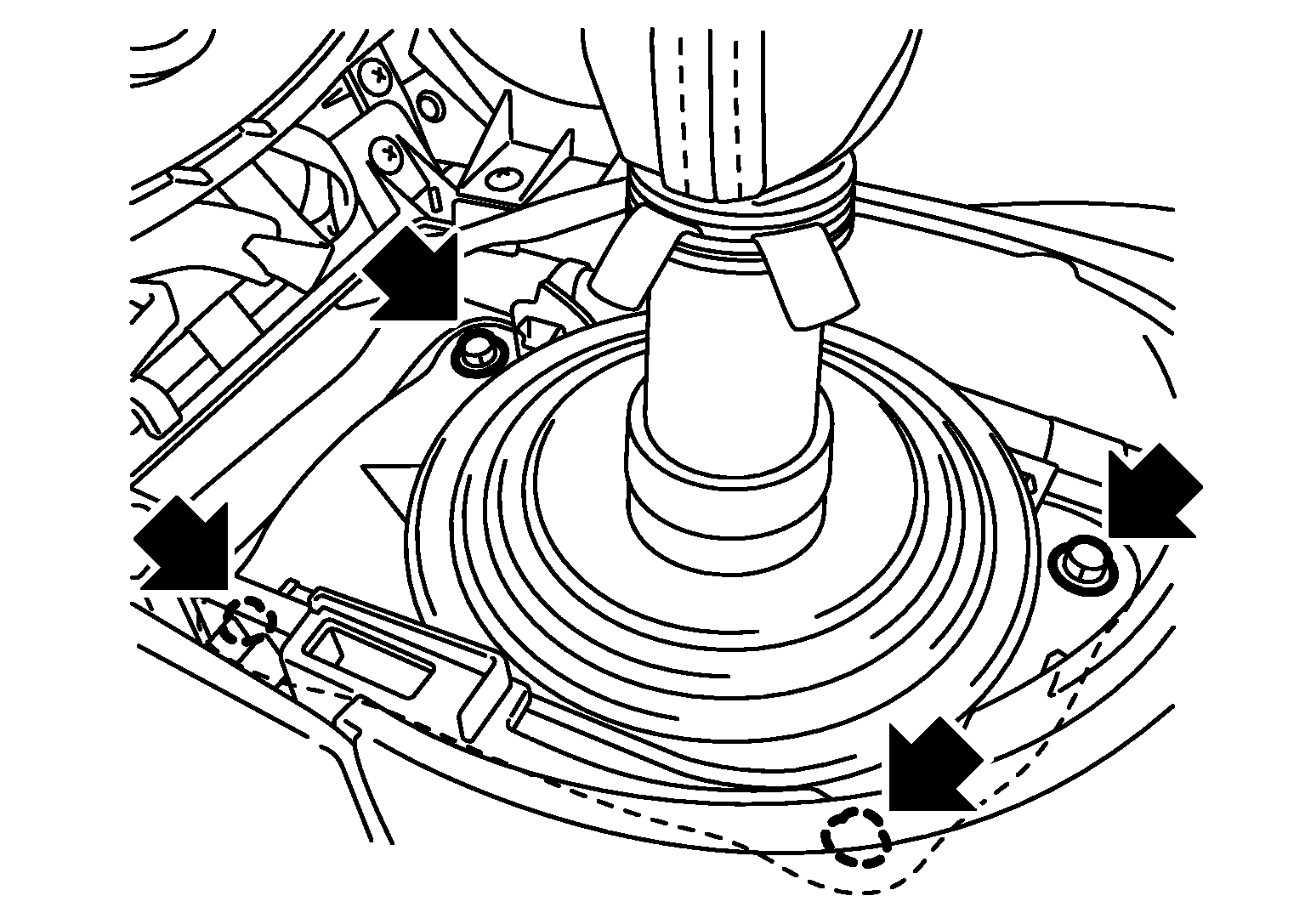

      Fig 4: Locating Hole Cover Mounting Bolts
      G06051931Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Remove mounting bolts (<==) while holding guide plate.
    7. Remove guide plate, control lever, and control lever spring from control lever housing.
  4. Remove exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
  5. Separate propeller shaft assembly. Refer to "REMOVAL AND INSTALLATION ".
    NOTE: Insert a suitable plug to rear oil seal of transmission assembly after removing propeller shaft assembly.

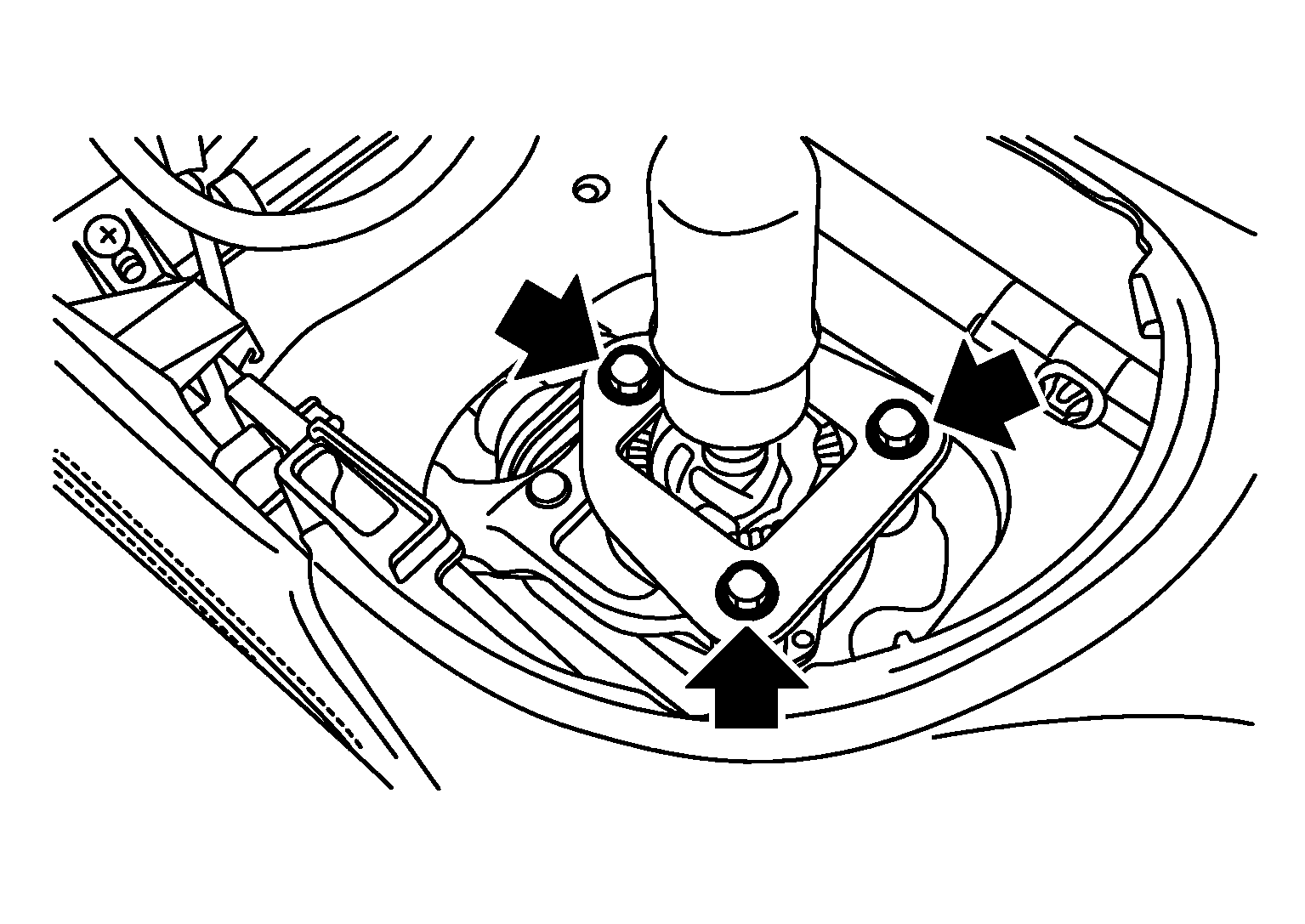

    Fig 5: Locating Guide Plate Mounting Bolts
    G06051932Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove exhaust mounting bracket. Refer to "REMOVAL AND INSTALLATION ".
  7. Remove suspension member stay. Refer to "REMOVAL AND INSTALLATION ".
  8. Remove clutch tube (1), clutch hose (2), and lock plate (3). Refer to "REMOVAL AND INSTALLATION ".
    Fig 6: Identifying Clutch Tube, Clutch Hose And Lock Plate
    G06051941Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash the affected area with water.
    • Never depress clutch pedal during removal procedure.
    NOTE: Insert a suitable plug to clutch hose and CSC tube after removing clutch tube.
  9. Remove crankshaft position sensor. Refer to "REMOVAL AND INSTALLATION ".
  10. Remove starter motor.
  11. Remove rear plate cover. Refer to "REMOVAL AND INSTALLATION ".
  12. Disconnect park/neutral position (PNP) switch connector.
  13. Disconnect gear lever position sensor connector (A).
    Fig 7: Identifying Gear Lever Position Sensor Connector
    G06051942Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never remove connector (B).
  14. Disconnect input speed sensor connector.
  15. Disconnect heated oxygen sensor 2 (bank 1) and heated oxygen sensor 2 (bank 2) connectors. Refer to "REMOVAL AND INSTALLATION ".
  16. Set a suitable jack to the transmission assembly.
    CAUTION: When setting a suitable jack, be careful so that it does not contact with the wire harness.
    NOTE: By placing wooden block between oil pan (upper) and front suspension member, the removal of transmission assembly from engine becomes easier.
  17. Remove engine mounting insulator (rear) mounting nuts. Refer to "REMOVAL AND INSTALLATION ".
  18. Remove rear engine mounting member. Refer to "REMOVAL AND INSTALLATION ".
  19. Remove engine and transmission mounting bolts using a power tool [Commercial service tool].
  20. Lower a suitable jack to the position where the back-up lamp switch connector can be disconnect. Then disconnect back-up lamp switch connector.
  21. Remove harness and harness brackets and then temporarily secure it to a position where it will not inhibit work.
  22. Remove transmission assembly from the engine.
    CAUTION:
    • Secure transmission assembly to a suitable jack while removing it.
    • The transmission assembly must not interfere with the three way catalyst (right bank) and three way catalyst (left bank).
    • The transmission assembly must not interfere with the wire harnesses and clutch hose.
    • The main drive gear must not interfere with the clutch cover.
    • Never hold control lever housing to prevent the bushing of control lever housing from deformation when moving transmission assembly.
  23. Remove CSC body and CSC tube. Refer to "REMOVAL AND INSTALLATION ".
