WITH S-MODE : Exploded View

WARNING: This page is about a different variant/trim than selected.

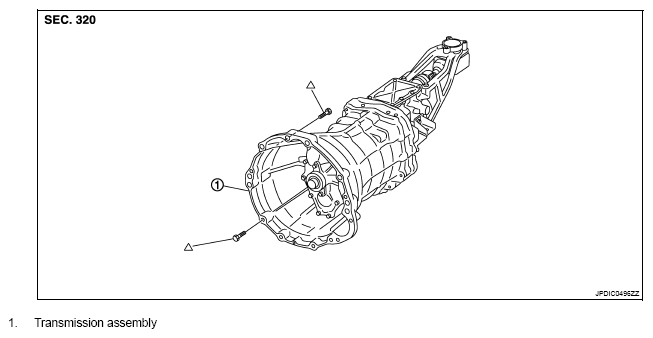

Fig 1: Identifying Transmission Assembly
G06051935Courtesy of NISSAN MOTOR CO., U.S.A.

↑ : Refer to "WITH S-MODE : REMOVAL AND INSTALLATION " for the locations and tightening torque.
