Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install gear lever position sensor (1) to rear extension upper cover.
CAUTION:
- Never disassemble gear lever position sensor.
- Never impact gear lever position sensor by dropping or others.
- Never place gear lever position sensor near magnetic materials.
- Never remove connector (A).

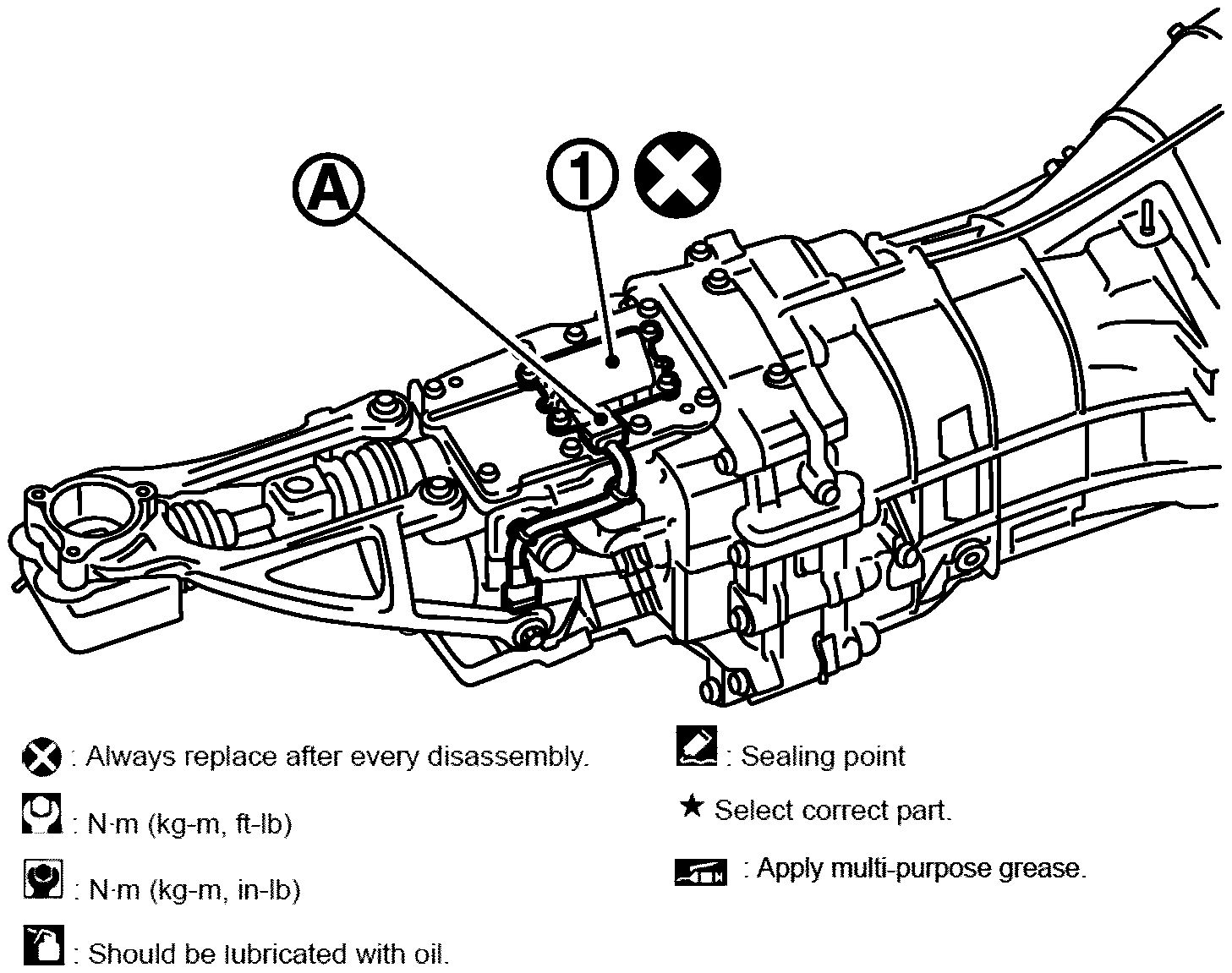

  Fig 1: Identifying Gear Lever Position Sensor And Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Never allow foreign matter on gear lever position sensor magnet (1) and gear lever position sensor (2).

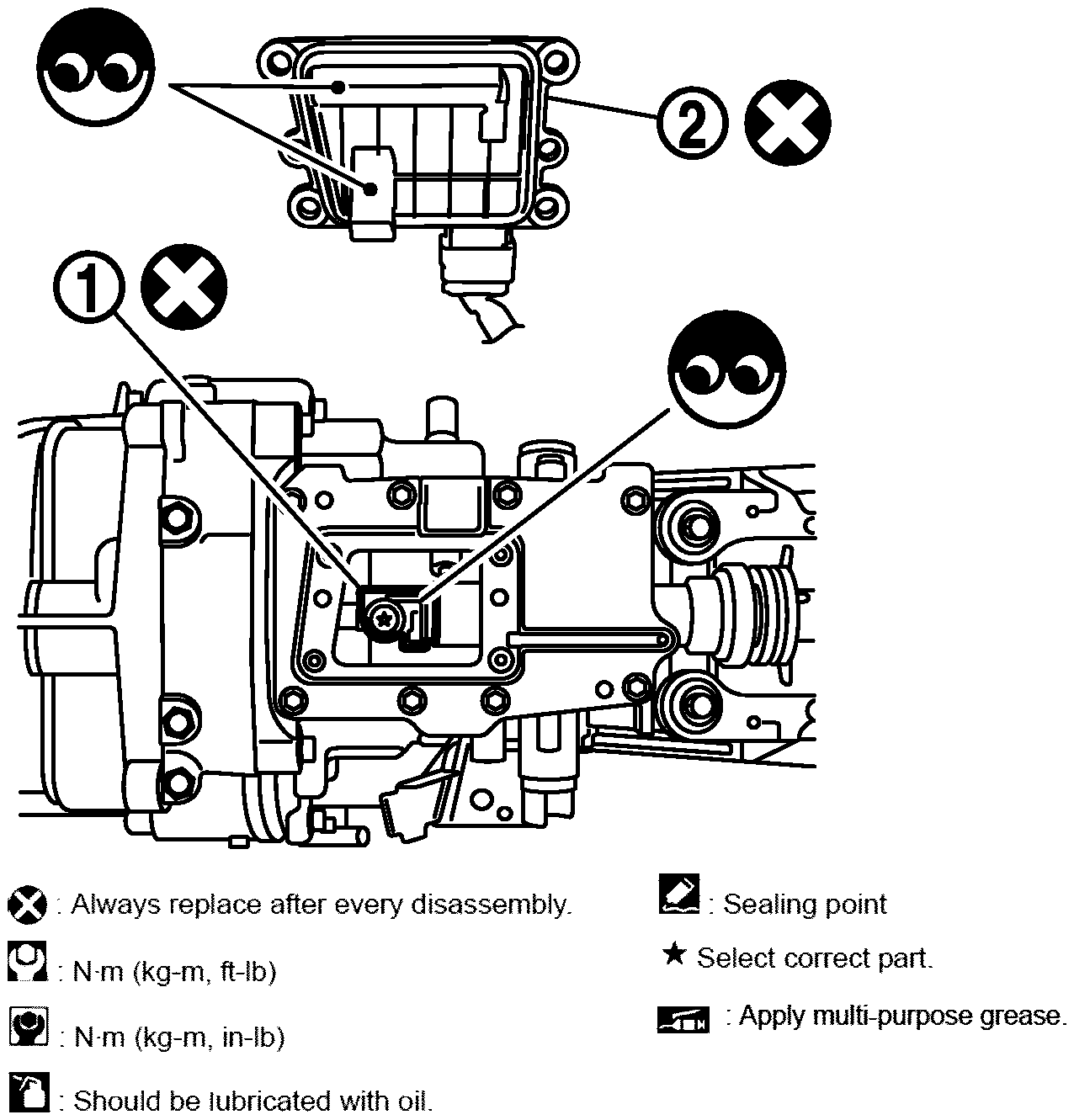

  Fig 2: Identifying Gear Lever Position Sensor Magnet And Gear Lever Position Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten mounting bolts (<==) to the specified torque in the numerical order as shown in the figure.

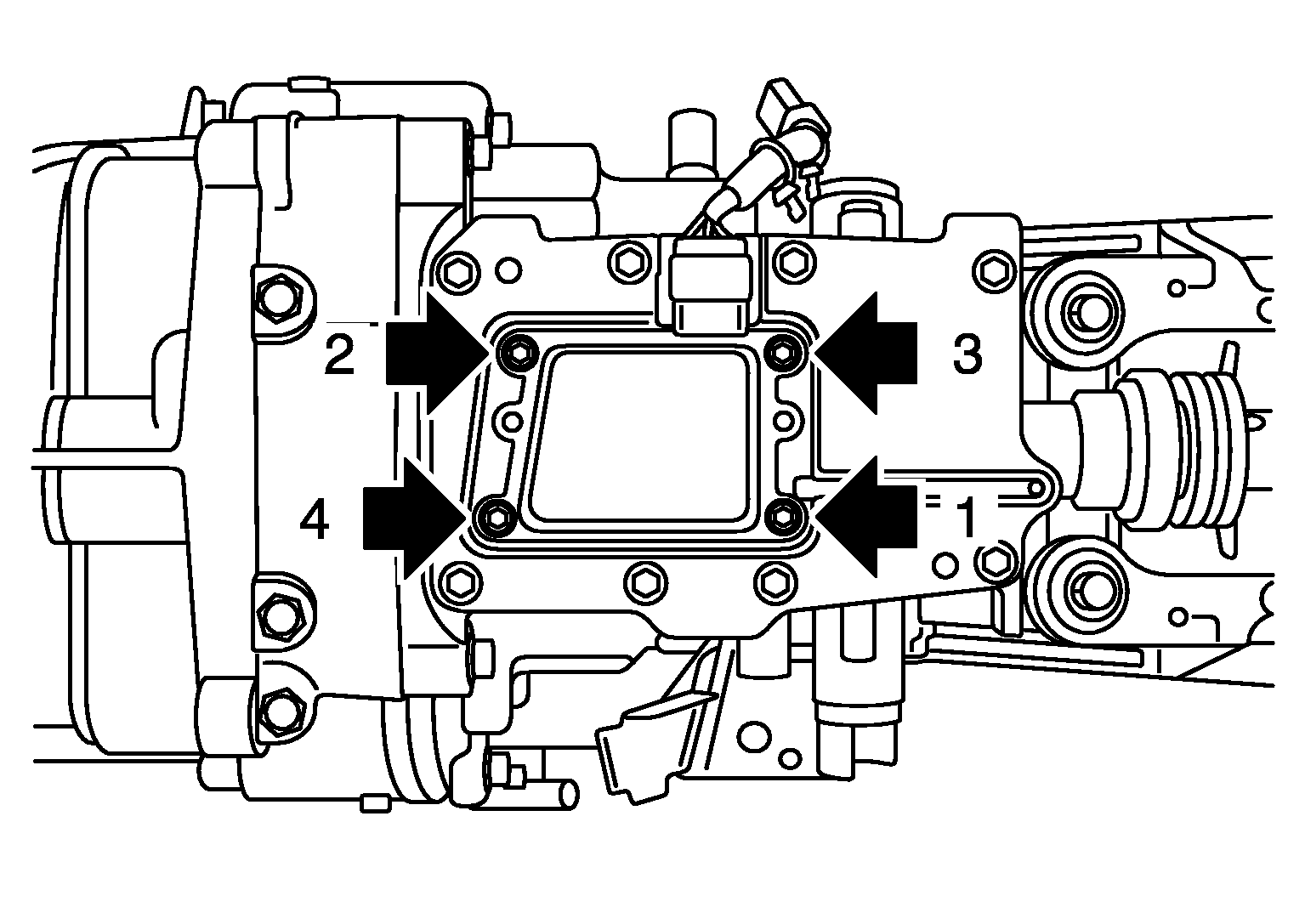

Fig 3: Identifying Gear Lever Position Sensor Mounting Bolts With Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Install clips to gear lever position sensor harness.
CAUTION: Never reuse clip.
Install gear lever position sensor harness to bracket.
Install transmission assembly. Refer to "WITH S-MODE : REMOVAL AND INSTALLATION ".
