Exploded View

WARNING: This page is about a different variant/trim than selected.

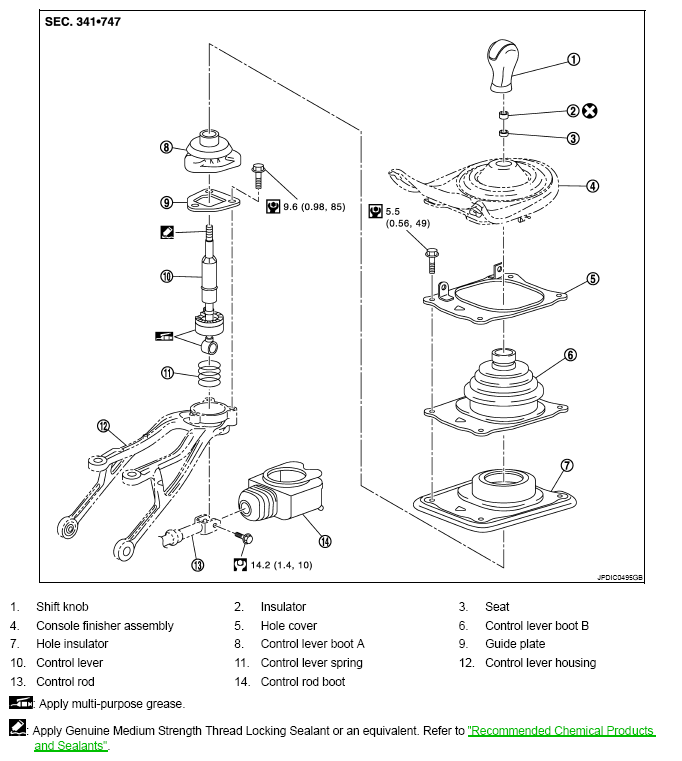

Fig 1: Exploded View Of Shift Control With Torque Specifications
G06051902Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
