Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Install rear oil seal (1) to rear extension using the drift [SST: ST33400001 (J-26082)].
Dimension "H" : 1.2 - 2.2 mm (0.047 - 0.087 in)

CAUTION: Never incline rear oil seal.
Install propeller shaft assembly. Refer to "REMOVAL AND INSTALLATION ".

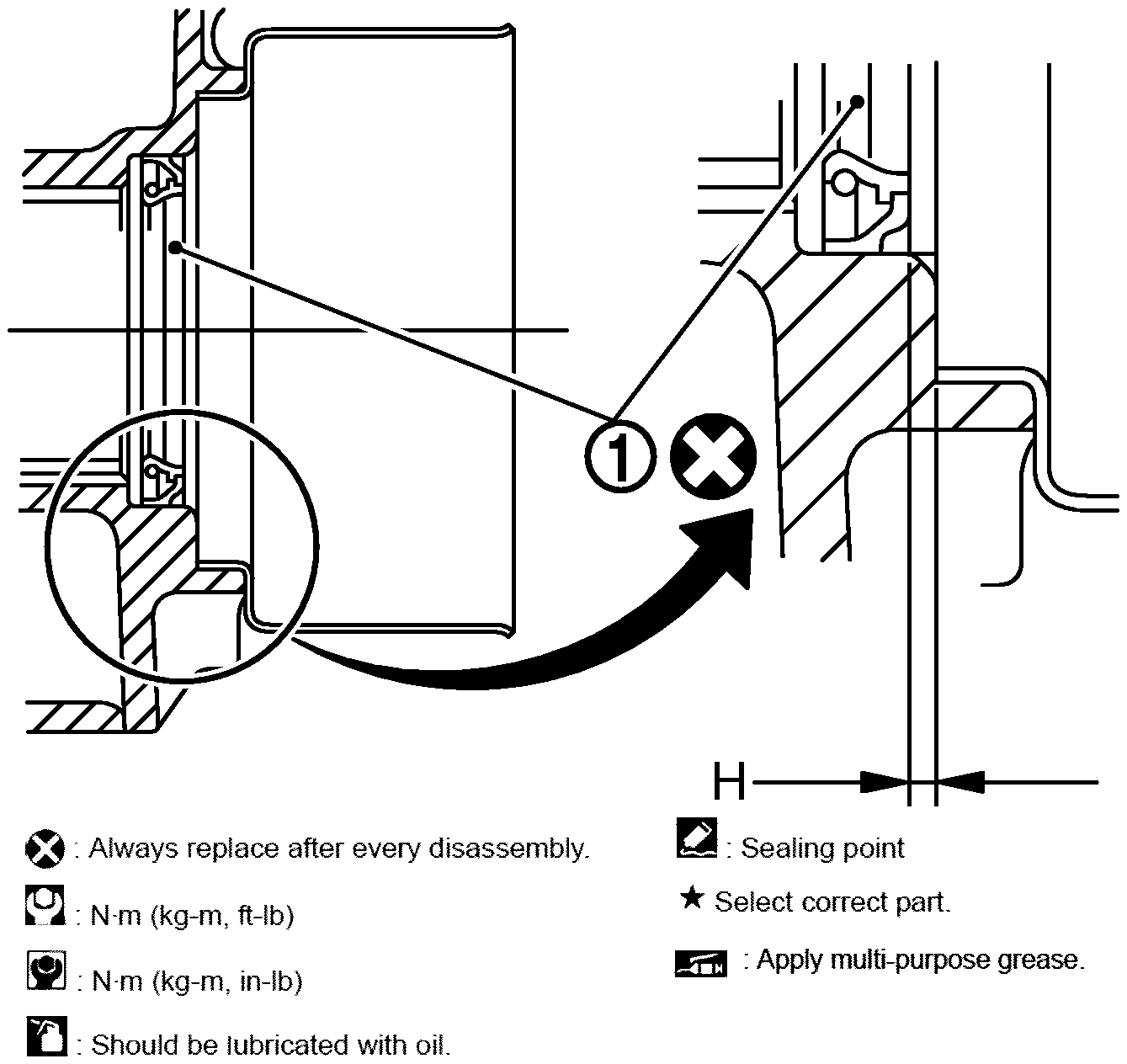

Fig 1: Identifying Rear Oil Seal Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
