Exploded View

WARNING: This page is about a different variant/trim than selected.

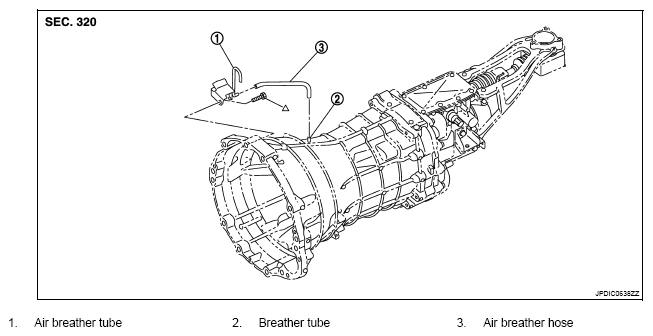

Fig 1: Identifying Air Breather Hose

G06051917

Courtesy of NISSAN MOTOR CO., U.S.A.

↑ : Refer to "WITHOUT S-MODE: REMOVAL AND INSTALLATION " (Without S-MODE) or "WITH S-MODE: REMOVAL AND INSTALLATION " (With S-MODE) for the tightening torque.
