Oil Level

WARNING: This page is about a different variant/trim than selected.
  1. Remove filler plug (1) and gasket from transmission case.
  2. Check the oil level from filler plug mounting hole as shown in the figure.
    CAUTION: Never start engine while checking oil level.
  3. Set a gasket on filler plug and then install it to transmission case.
    CAUTION: Never reuse gasket.
  4. Tighten filler plug to the specified torque. Refer to "WITHOUT S-MODE : EXPLODED VIEW " (Without S-MODE) or "WITH S-MODE : EXPLODED VIEW " (With S-MODE).

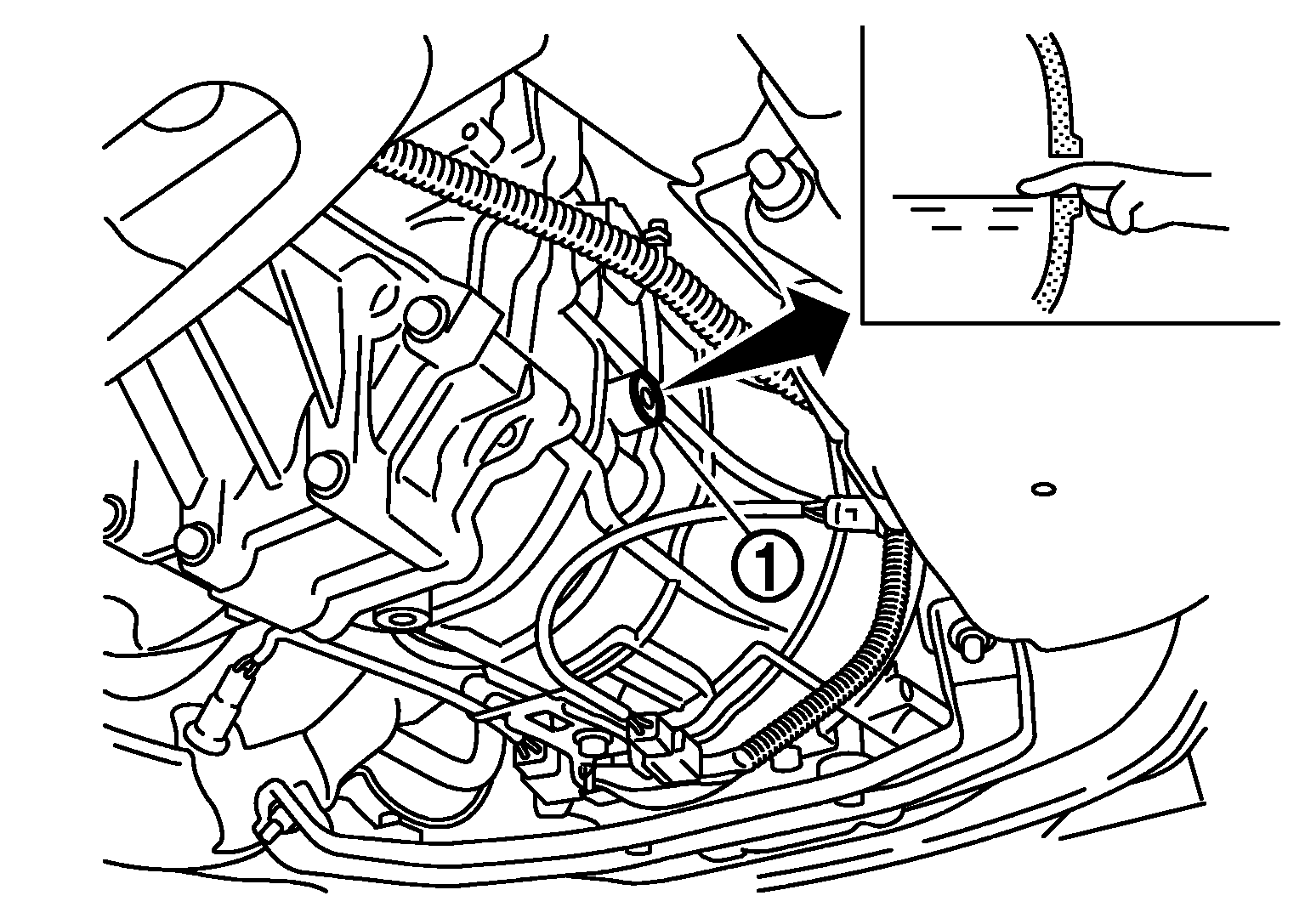

    Fig 1: Checking Oil Level
    G05973061Courtesy of NISSAN MOTOR CO., U.S.A.
