Section 1 (Manual Transmission (FS6R31A))
>>
Function Diagnosis
>>
M/T System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View
WARNING:
This page is about a different variant/trim than selected.

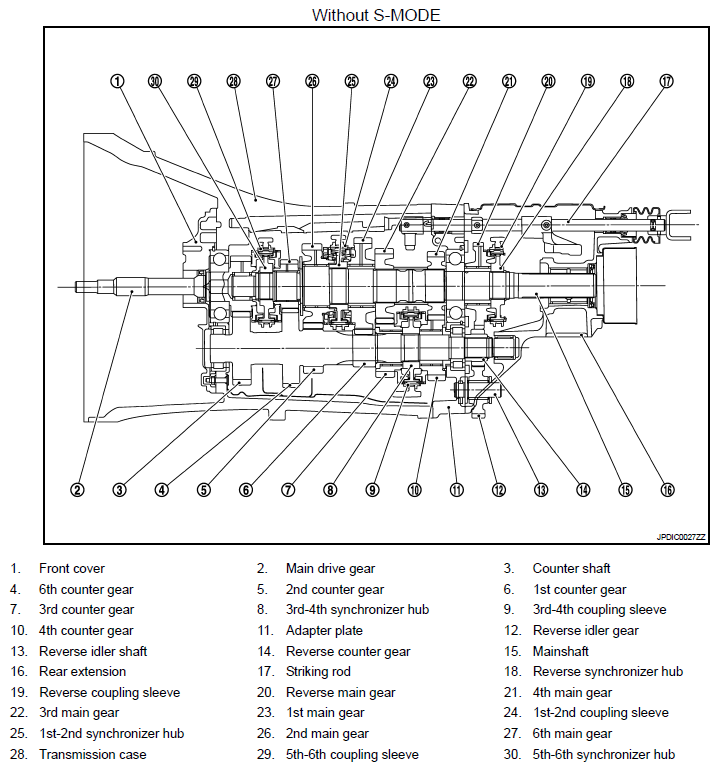

Fig 1: Cross-Sectional View Of M/T System (Without S-Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.

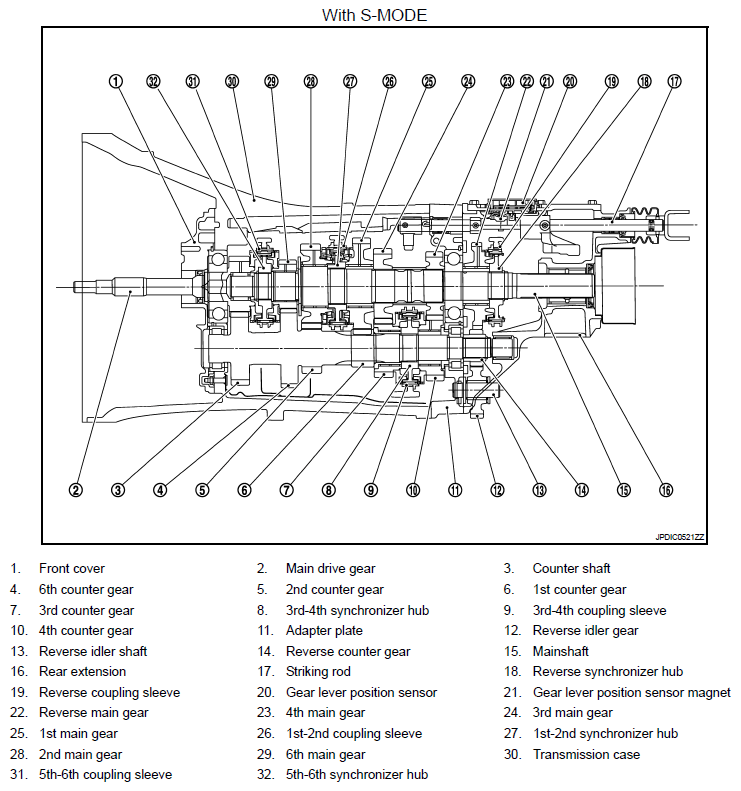

Fig 2: Cross-Sectional View Of M/T System (With S-Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
