Inspection Before Disassembly

WARNING: This page is about a different variant/trim than selected.

Shaft

Before disassembly, measure the end play "L" for each position. If the end play is outside the standard value, disassemble and inspect.

Mainshaft

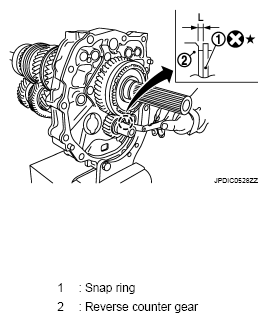

Fig 1: Checking Mainshaft End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

End play "L" : Refer to "END PLAY ".
Counter shaft

Fig 2: Checking Counter Shaft End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

End play "L" : Refer to "END PLAY ".
