Shift Fork And Fork Rod

WARNING: This page is about a different variant/trim than selected.

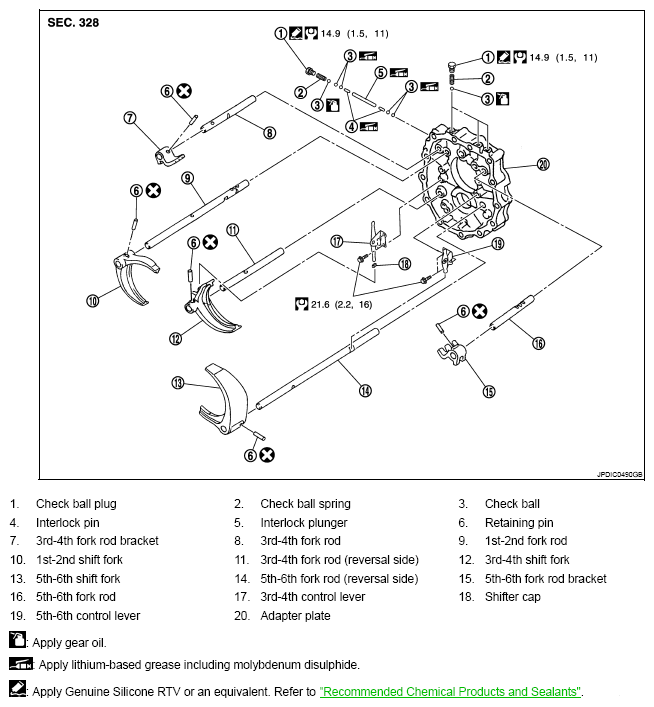

Fig 1: Identifying Shift Fork And Fork Rod Components (1 Of 3) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

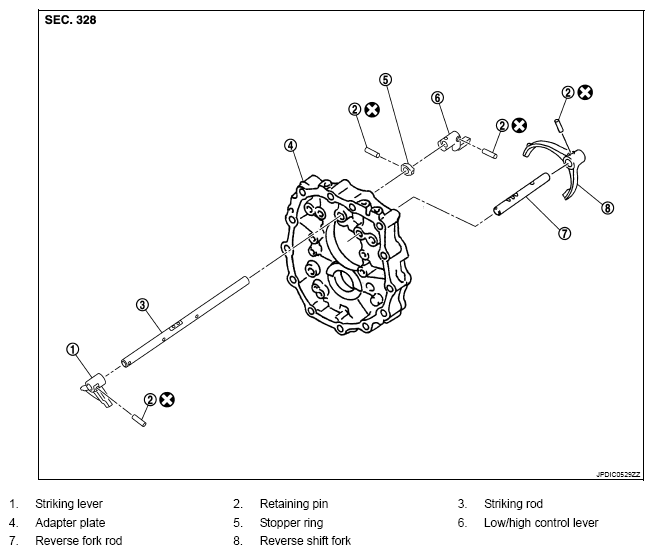

Fig 2: Identifying Shift Fork And Fork Rod Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for the symbols in the figure.

Fig 3: Identifying Shift Fork And Fork Rod Components (3 Of 3) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
