Shaft And Gear

WARNING: This page is about a different variant/trim than selected.

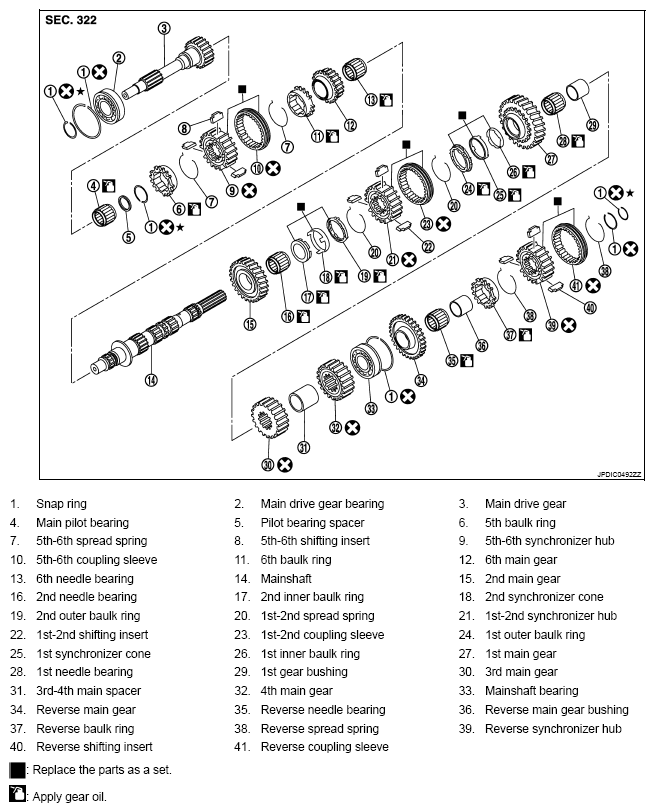

Fig 1: Identifying Shaft And Gear Components (1 Of 2)

G06052065

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.

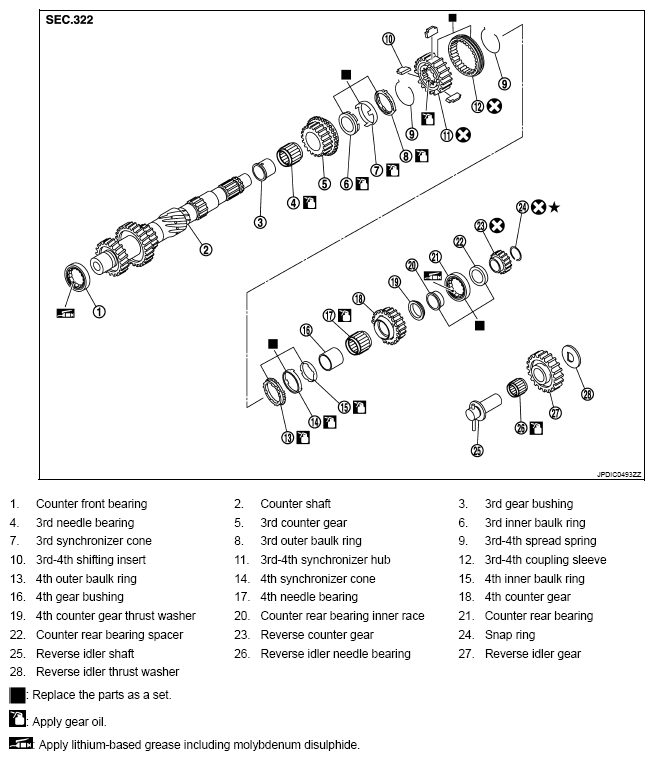

Fig 2: Identifying Shaft And Gear Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
Apply gear oil to gears, shafts, synchronizers, and bearings when assembling.
