Case And Extension

WARNING: This page is about a different variant/trim than selected.

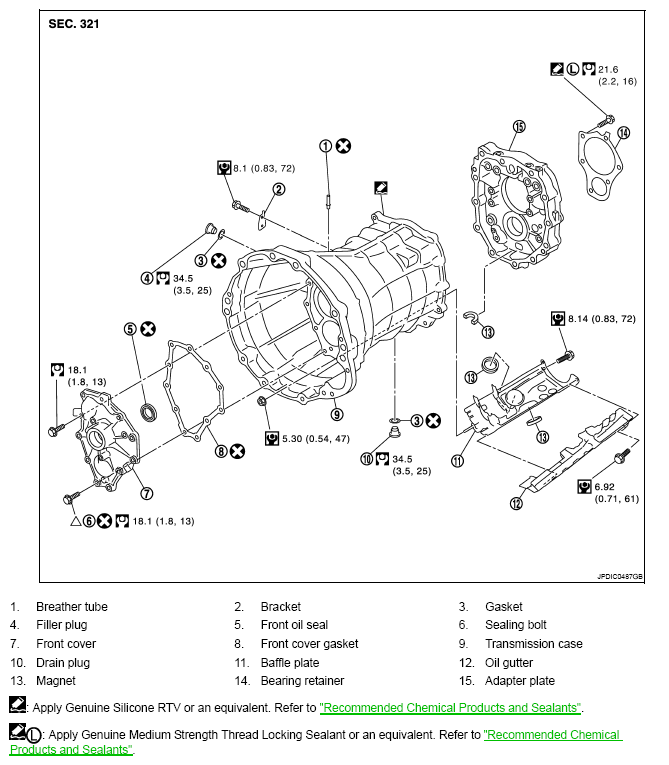

Fig 1: Exploded View Of Transmission Case (1 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

↑ : Refer to "WITH S-MODE : ASSEMBLY " for the locations.

Refer to "COMPONENTS " for symbols not described on the above.

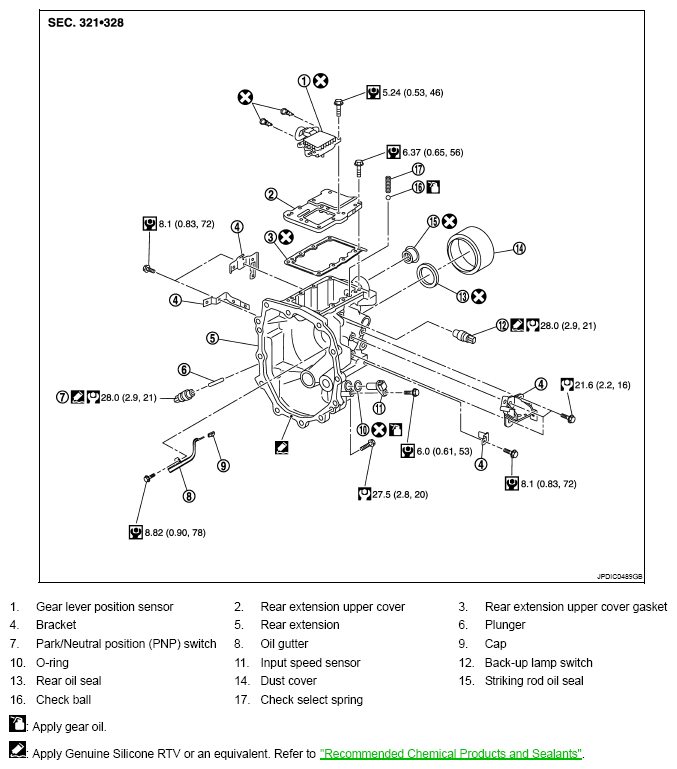

Fig 2: Exploded View Of Transmission Case (2 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
