Shift Fork And Fork Rod

WARNING: This page is about a different variant/trim than selected.
  1. Install adapter setting plate (A) [SST: ST22490000 (-)] to adapter plate and then fixing in adapter setting plate using a vise.
    CAUTION: Never directly secure the surface in a vise.
  2. Remove baffle plate and oil gutter from adapter plate.
  3. Remove magnets from baffle plate.
  4. Remove magnet from adapter plate.

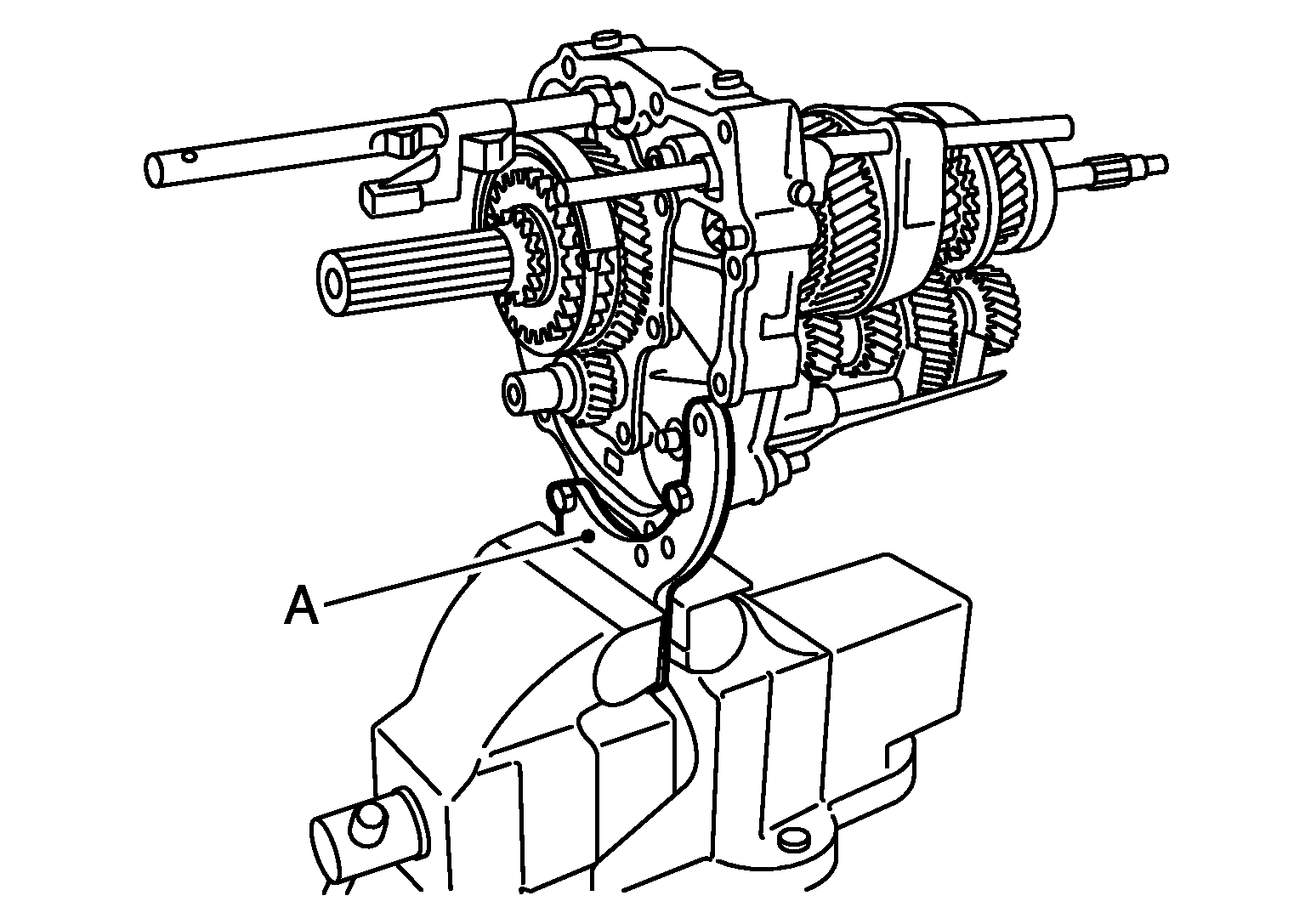

    Fig 1: Identifying Adapter Setting Plate
    G05973134Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove check balls (1), check ball springs (2), and check ball plugs (3) from adapter plate.
    CAUTION: Never drop check ball.
    Fig 2: Identifying Check Balls, Check Ball Springs And Check Ball Plugs
    G05973135Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove 3rd-4th control lever (1) and shifter cap (2) from adapter plate.
    CAUTION: Never lose shifter cap.
    Fig 3: Identifying 3rd-4th Control Lever And Shifter Cap
    G05973136Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove striking lever (1) and striking rod (2).
    Fig 4: Locating Striking Rod Retaining Pin
    G05973137Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove 3rd-4th shift fork (1) and 3rd-4th fork rod (reversal side) (2).
    Fig 5: Identifying 3rd-4th Shift Fork And 3rd-4th Fork Rod (Reversal Side)
    G05973138Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove 3rd-4th fork rod (1) and 3rd-4th fork rod bracket (2).

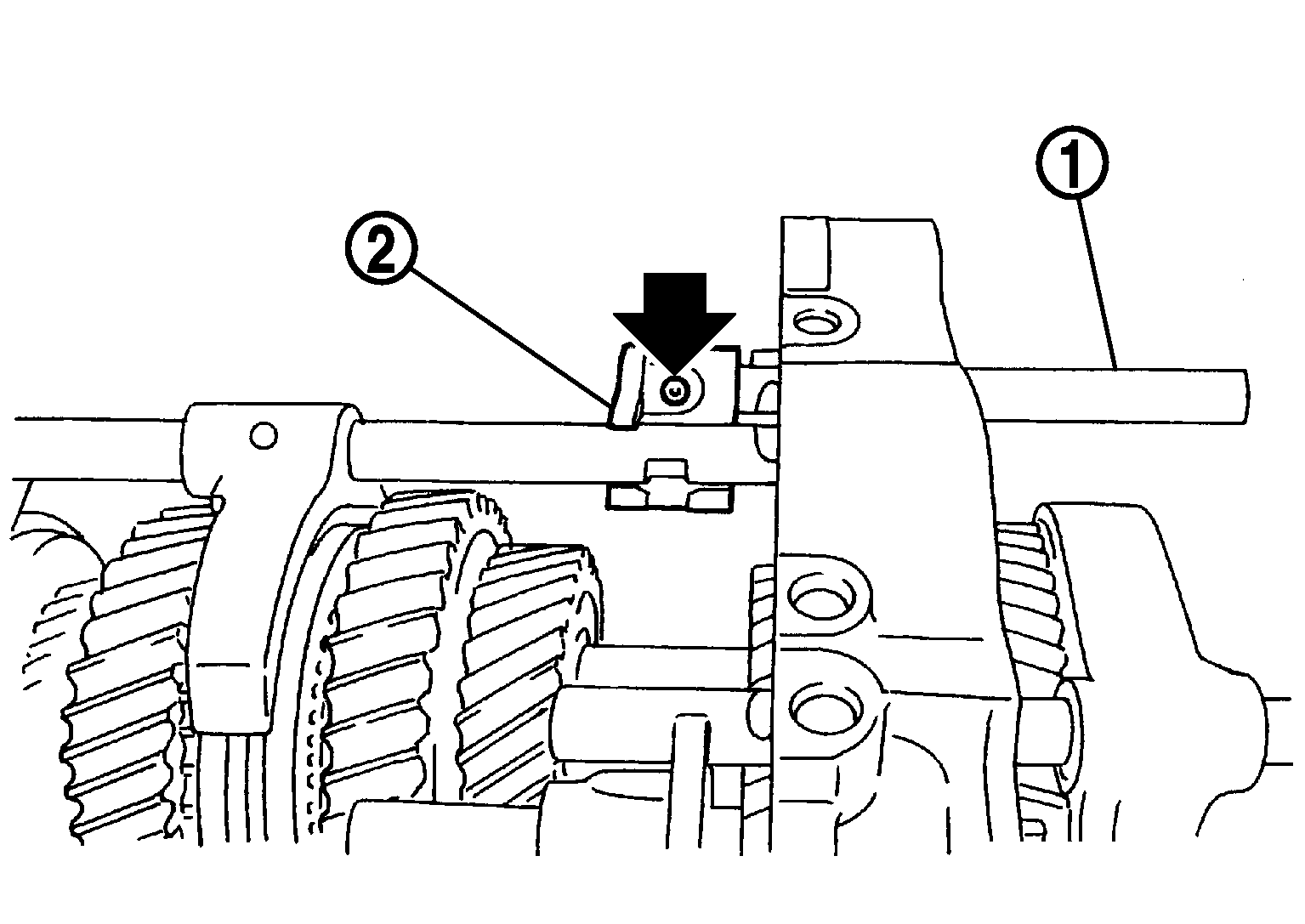

    Fig 6: Identifying 3rd-4th Fork Rod And 3rd-4th Fork Rod Bracket
    G05733868Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove check balls (1) from adapter plate.
    Fig 7: Identifying Check Balls And Interlock Pin
    G06052090Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never drop check ball.
  11. Remove interlock pin (2) from 1st-2nd fork rod.
    CAUTION: Never drop interlock pin.
  12. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove 1st-2nd shift fork (1) and 1st-2nd fork rod (2).
    Fig 8: Identifying 1st-2nd Shift Fork And 1st-2nd Fork Rod
    G05973178Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove interlock plunger (1) from adapter plate.
    Fig 9: Identifying Interlock Plunger And Interlock Pin
    G06052092Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove interlock pin (2) from reverse fork rod.
    CAUTION: Never drop interlock pin.
  15. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove reverse shift fork (1) and reverse fork rod (2).
    CAUTION: Never drop reverse coupling sleeve.
    Fig 10: Identifying Reverse Shift Fork And Reverse Fork Rod
    G05973143Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove check balls (1) from adapter plate.
    Fig 11: Identifying Check Balls
    G06052094Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Never drop check ball.
  17. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove 5th-6th fork rod bracket (1) and 5th-6th fork rod (2).
    Fig 12: Identifying 5th-6th Fork Rod Bracket And 5th-6th Fork Rod
    G05973145Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Remove 5th-6th control lever from adapter plate.
    Fig 13: Identifying 5th-6th Control Lever From Adapter Plate
    G06052096Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove 5th-6th shift fork (1) and 5th-6th fork rod (reversal side) (2).
    Fig 14: Identifying 5th-6th Shift Fork And 5th-6th Fork Rod (Reversal Side)
    G05973147Courtesy of NISSAN MOTOR CO., U.S.A.
