Striking Rod

WARNING: This page is about a different variant/trim than selected.
  1. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove stopper ring from striking rod.
    Fig 1: Locating Retaining Pin
    G06052255Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove retaining pin (<==) using a pin punch [Commercial service tool] and then remove low/high control lever from striking rod.

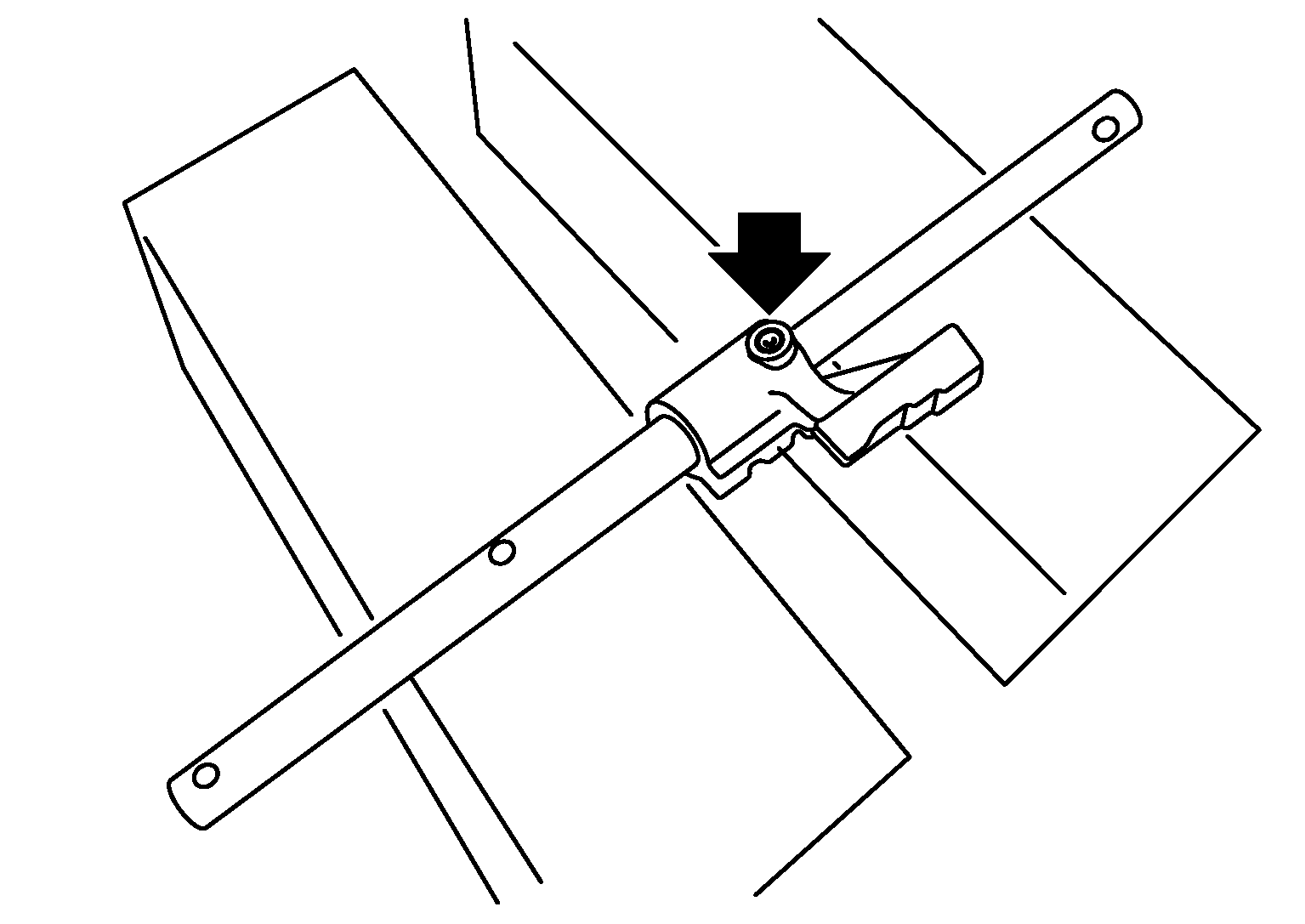

    Fig 2: Locating Retaining Pin
    G05973302Courtesy of NISSAN MOTOR CO., U.S.A.
