Main Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.

Install main drive gear bearing (1) to main drive gear with a pressing machine using the drift (A) [SST: KV32102700 (-)].

Fig 1: Installing Main Drive Gear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful with the orientation of main drive gear bearing.

Fig 2: Locating Main Drive Gear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Select and install snap ring (1) to main drive gear so that the end play "L" is adjusted to the standard value.

Fig 3: Measuring End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

End play "L" : Refer to "END PLAY ".
Apply gear oil to main pilot bearing and 5th bulk ring.
Install main pilot bearing, pilot bearing spacer, and 5th bulk ring to main drive gear.

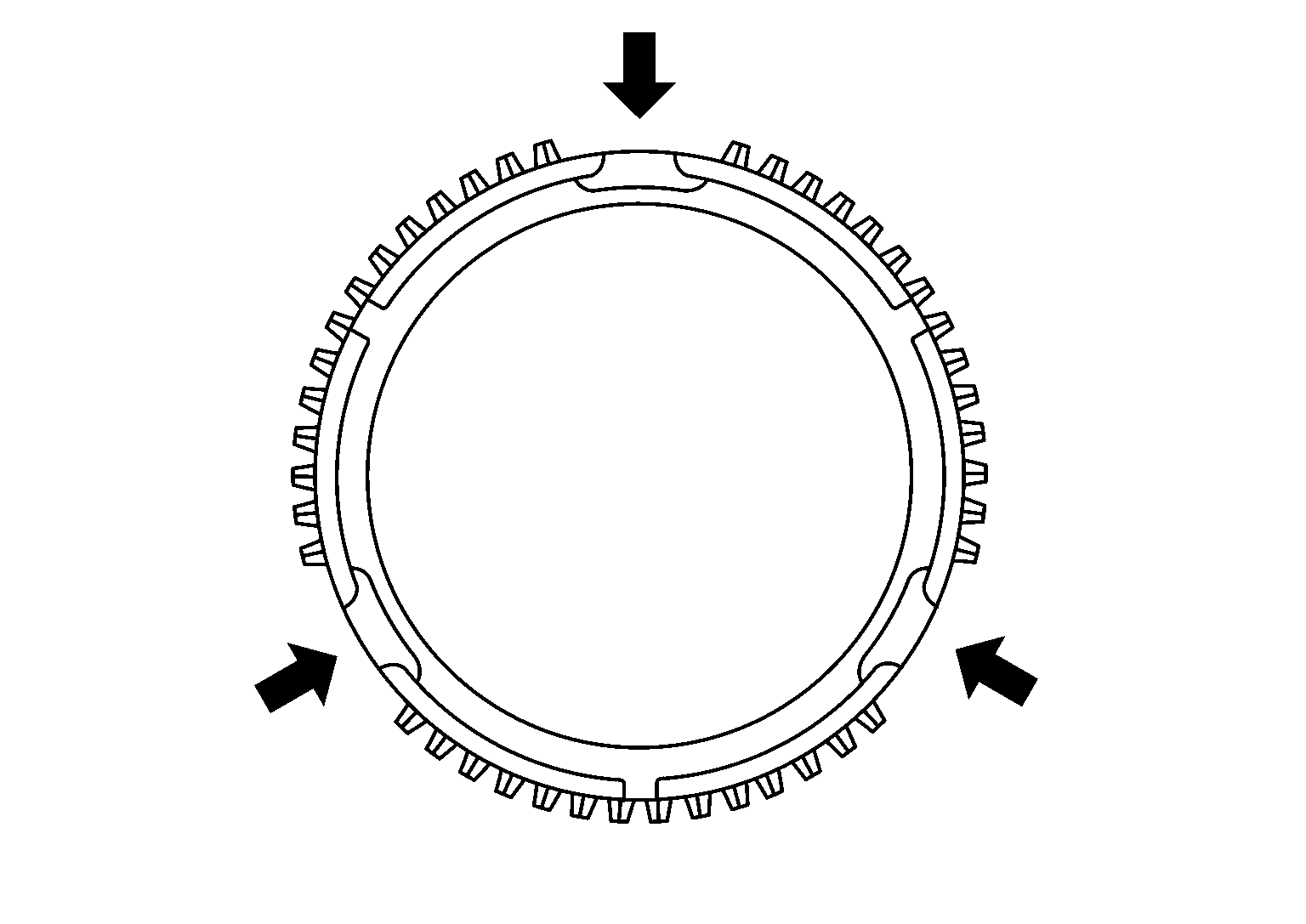

NOTE: 5th and 6th bulk rings have three spaces that four gear teeth are missing as shown in the figure.

Fig 4: Locating 5th And 6th Bulk Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
