Inspection After Disassembly

WARNING: This page is about a different variant/trim than selected.

Shaft and Gear

Check the shaft for damage or bend. Replace if necessary.
Check the gears for any damage, scaling, or uneven wear. Replace if necessary.

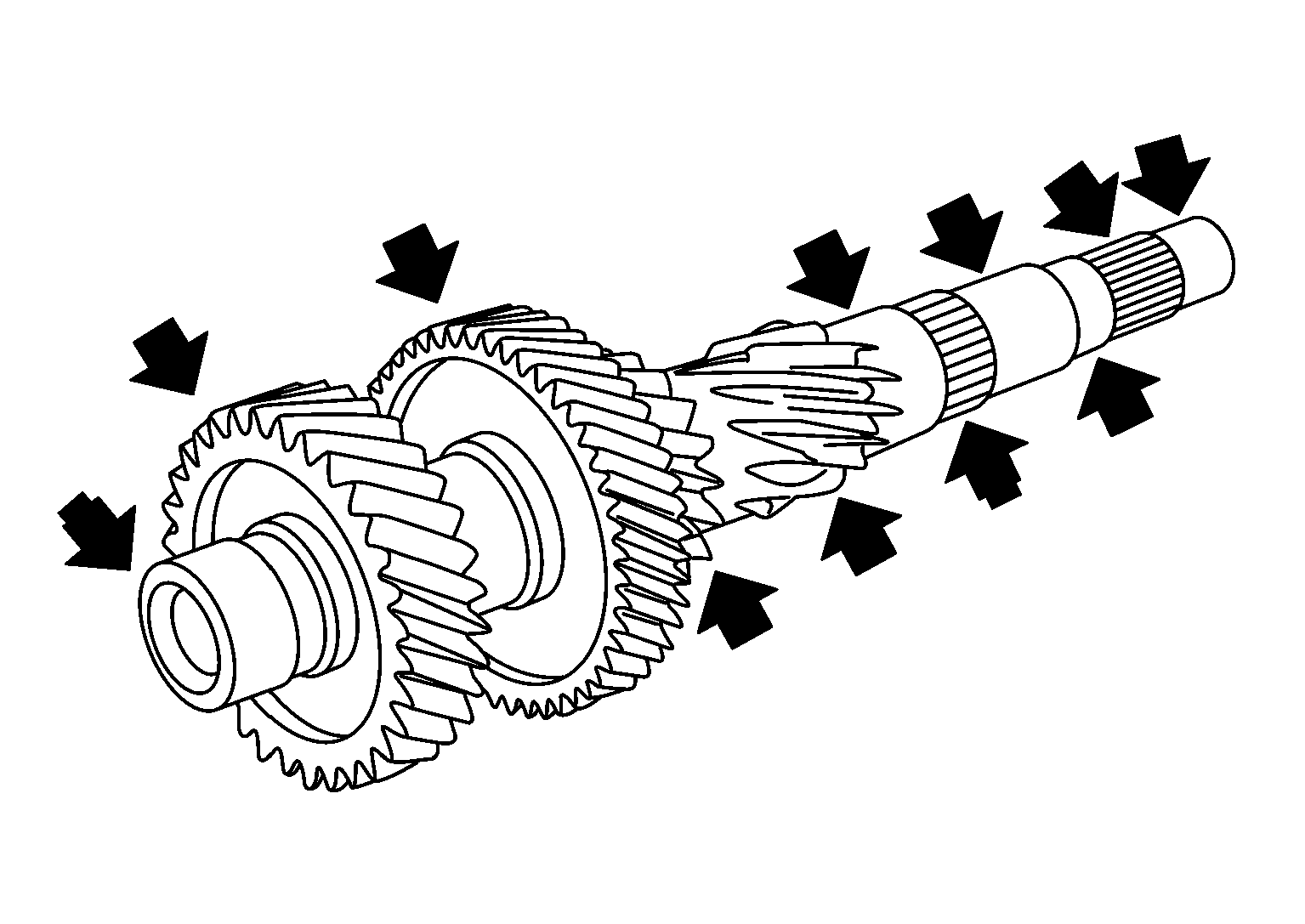

Fig 1: Locating Shaft And Gear Damage Area
Courtesy of NISSAN MOTOR CO., U.S.A.

Synchronizer Hub and Coupling Sleeve

Check the contact surface of the coupling sleeve, synchronizer hub, and shifting inserts for damage and uneven wear. Replace if necessary.
The coupling sleeve and synchronizer hub moves smoothly.

Fig 2: Checking Contact Surface Of Coupling Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.

Bulk Ring and Spread Spring

Check the cam surface and contact surface of the bulk ring for damage and uneven wear. Replace if necessary.
Check the spread springs for damage. Replace if necessary.

Fig 3: Inspecting Cam Surface On Bulk Ring Or Contact Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

Bulk Ring Clearance for Double Cone Synchronizer (4th)

Measure the clearance of outer bulk ring (1), synchronizer cone (2), and inner bulk ring (3) with the following procedure.

CAUTION: The outer bulk ring, synchronizer cone, and inner bulk ring manage the clearances "A" and "B" as a set. Therefore, replace them as a set if the clearances are outside the limit value.

Fig 4: Measuring Clearance Of Outer Bulk Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

Measure the clearance "A" at 2 points or more on the opposite side using a dial indicator (B) and the puller (C) [SST: ST30031000 (J-22912-01)], and then calculate the mean value.

Fig 5: Measuring Clearance "A"
Courtesy of NISSAN MOTOR CO., U.S.A.

Clearance "A" : Refer to "BULK RING CLEARANCE ".
Measure the clearance "B" at 2 points or more on the opposite side using a feeler gauge (A), and then calculate the mean value.

Fig 6: Measuring Clearance "B"
Courtesy of NISSAN MOTOR CO., U.S.A.

Clearance "B" : Refer to "BULK RING CLEARANCE ".

Bulk Ring Clearance for Triple Cone Synchronizer (3rd)

Measure the clearance of outer bulk ring (1), synchronizer cone (2), and inner bulk ring (3) with the following procedure.

CAUTION: The outer bulk ring, synchronizer cone, and inner bulk ring manage the clearances "A", "B", and "C" as a set. Therefore, replace them as a set if the clearances are outside the limit value.

Fig 7: Measuring Clearance Of Outer Bulk Ring

Courtesy of NISSAN MOTOR CO., U.S.A.

Measure the clearance "A" when pressing the outer bulk ring (1) against the cone (C) of clutch gear by hands at 2 points or more on the opposite side using a feeler gauge (B), and then calculate the mean value.

Fig 8: Pressing Outer Bulk Ring Against Cone Of Clutch Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

Clearance "A" : Refer to "BULK RING CLEARANCE ".
Measure the clearance "B" at 2 points or more on the opposite side using a feeler gauge (A), and then calculate the mean value.

Fig 9: Measuring Clearance "B"
Courtesy of NISSAN MOTOR CO., U.S.A.

Clearance "C" : Refer to "BULK RING CLEARANCE ".
Measure the clearance "C" when pressing the outer bulk ring (1) against the cone (B) of clutch gear by hands at 2 points or more on the opposite side using a feeler gauge (A), and then calculate the mean value.

Fig 10: Pressing Outer Bulk Ring Against Cone Of Clutch Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

Clearance "B" : Refer to "BULK RING CLEARANCE ".

Bearing

Check the bearing for damage and unsmooth rotation. Replace if necessary.

Fig 11: Checking Bearing For Damage And Unsmooth Rotation

Courtesy of NISSAN MOTOR CO., U.S.A.
