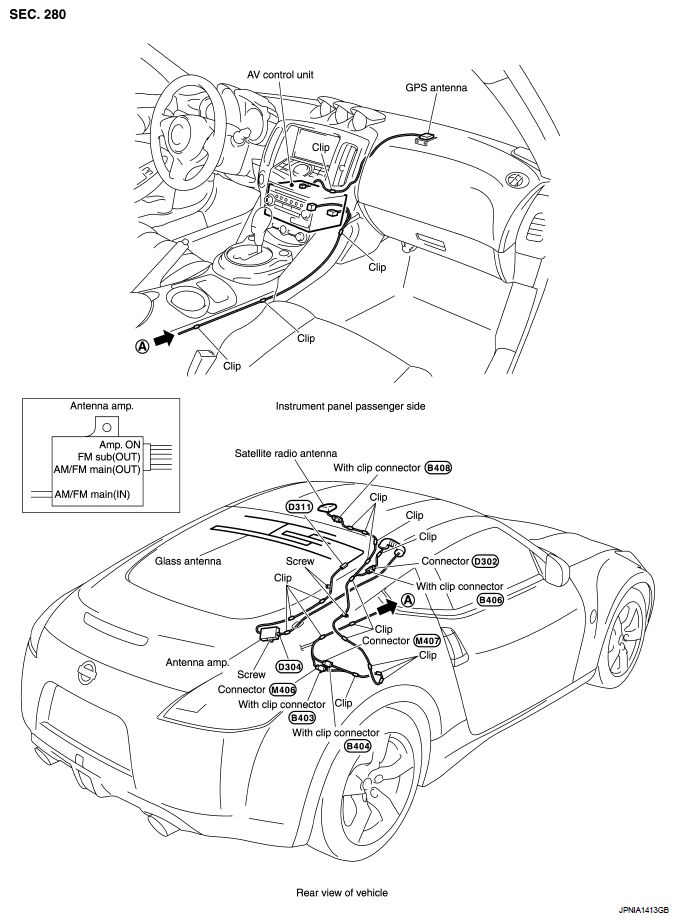

Home >> Nissan-Datsun >> 2009 >> 370Z Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio System, Visual System, Navigation System >> BOSE Audio With Navigation >> On-Vehicle Repair >> Antenna Feeder (Radio) >> Harness Layout
