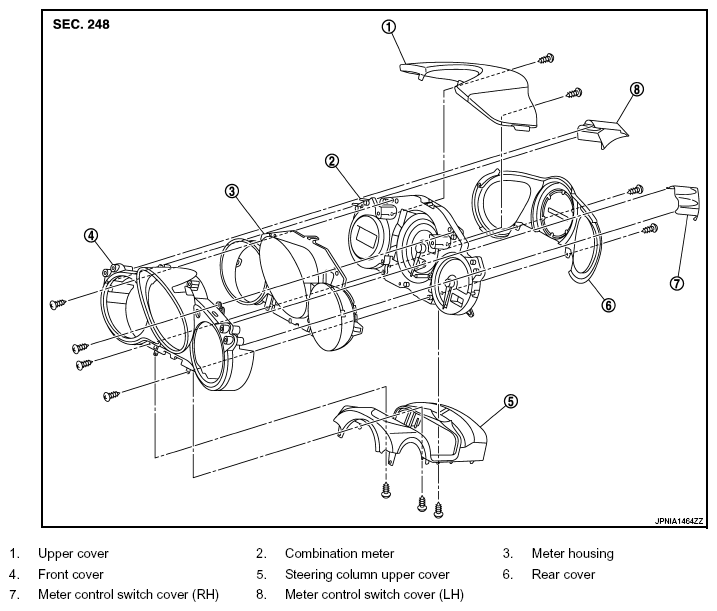

Home >> Nissan-Datsun >> 2009 >> 370Z Base, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> On-Vehicle Repair >> Combination Meter >> Exploded View >> Disassembly
