Disassembly and Assembly: Disassembly

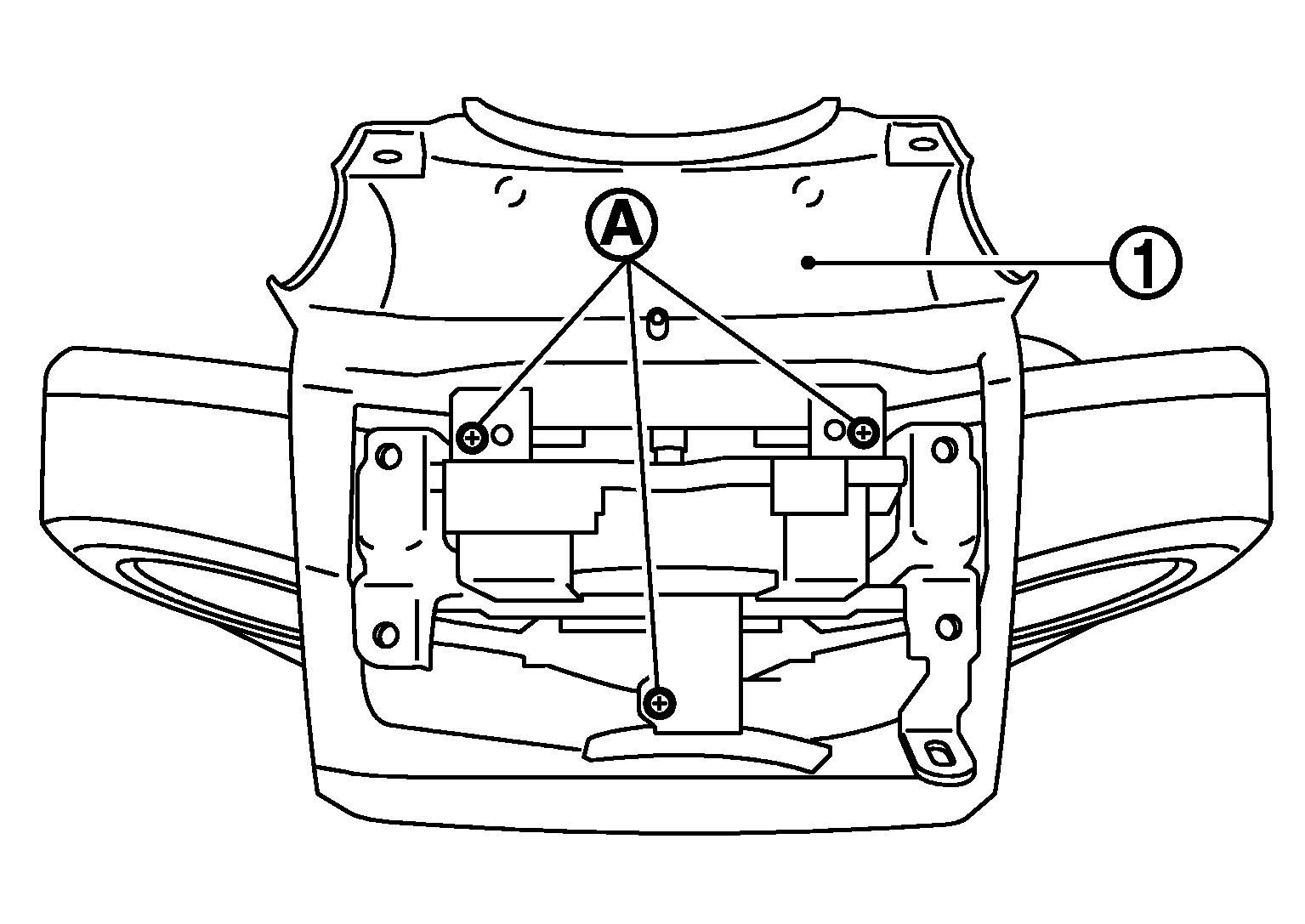

  1. Remove screws (A) and remove steering column upper cover (1).
    Fig 1: Identifying Steering Column Upper Cover Screws
    G06053837Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Disengage pawl and remove meter control switch cover (1).

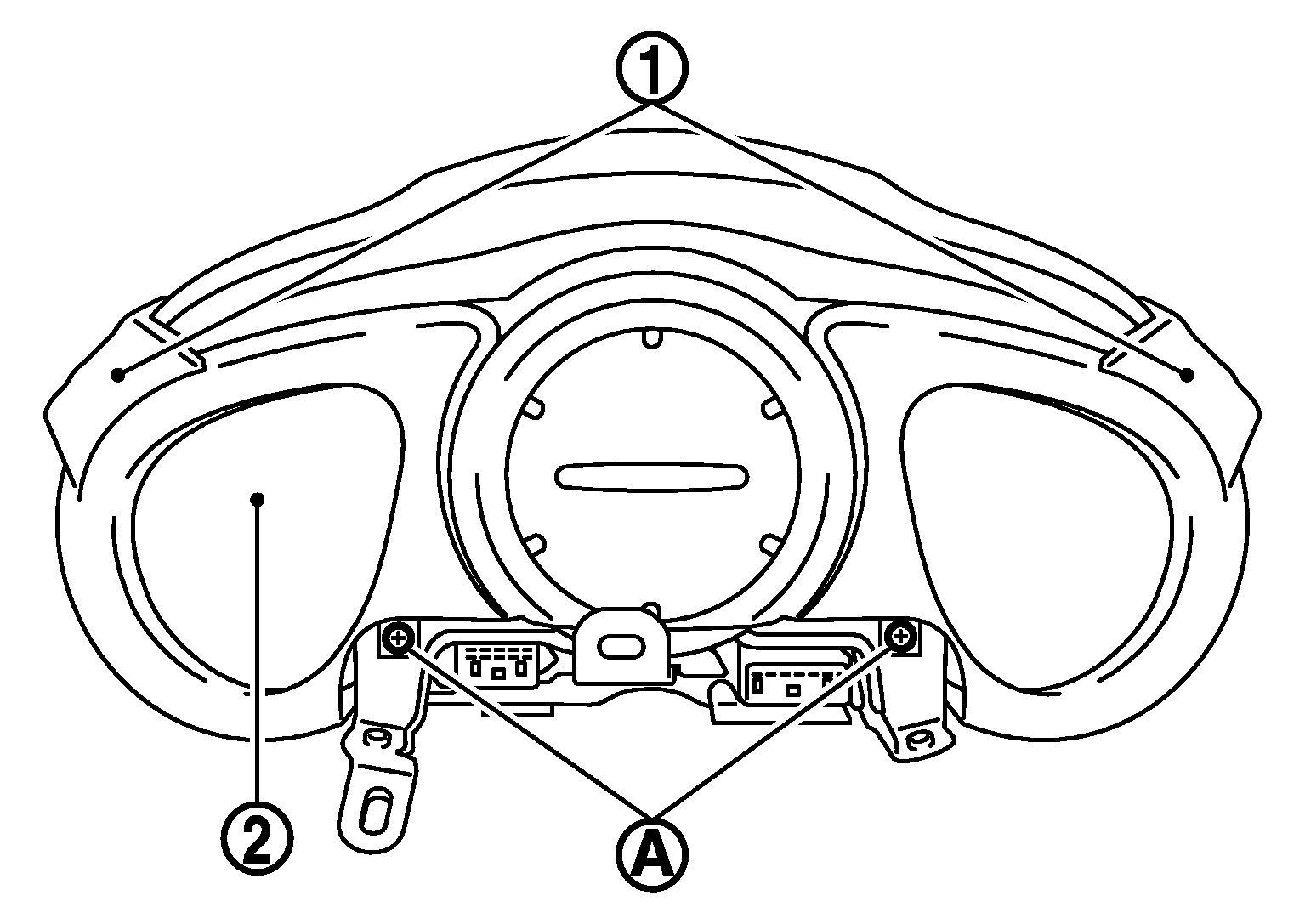

  3. Remove screws (A) and remove rear cover (2).
    Fig 2: Identifying Meter Control Switch Cover And Screws
    G06053838Courtesy of NISSAN MOTOR CO., U.S.A.

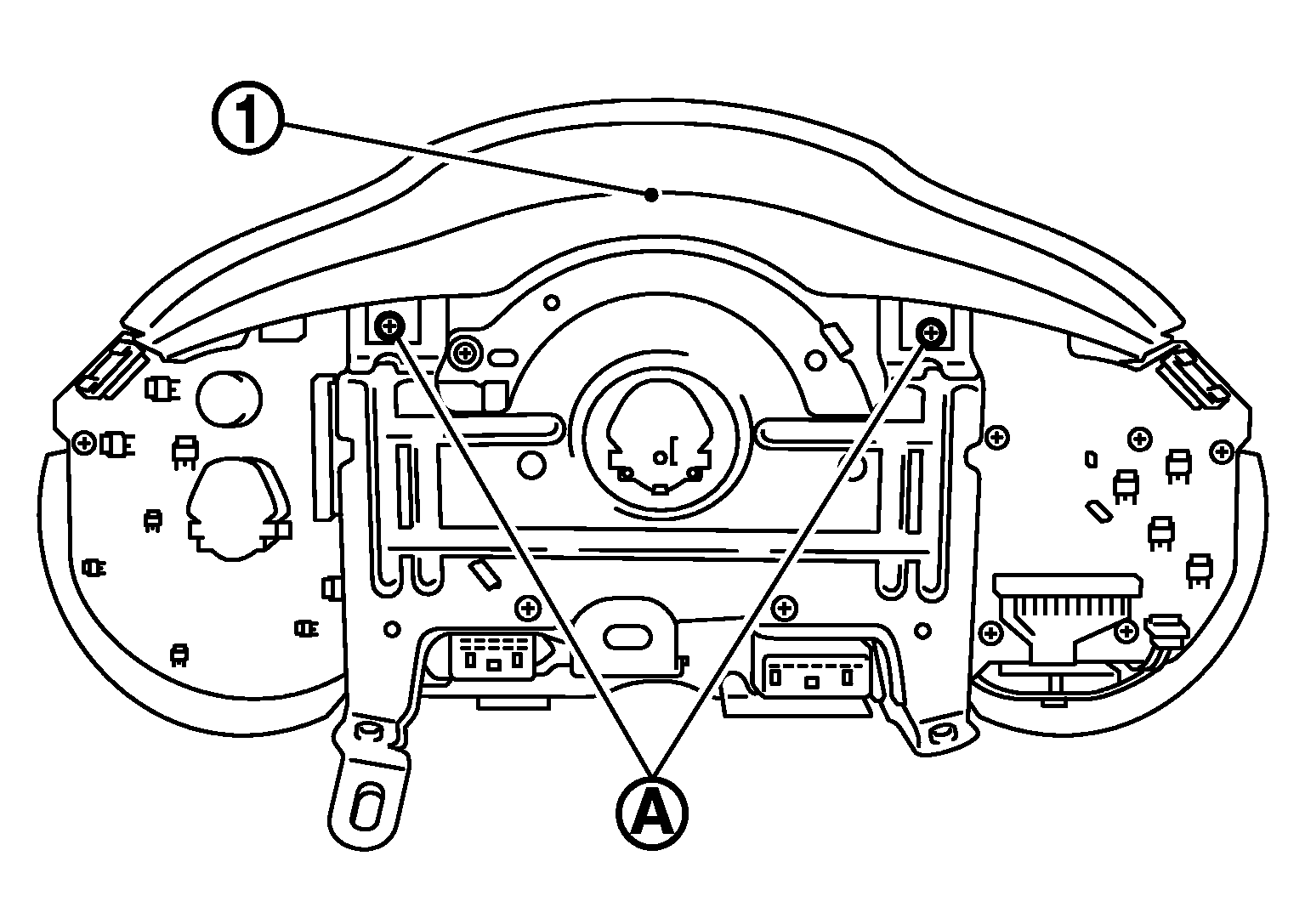

  4. Remove screws (A) and remove upper cover (1).
    Fig 3: Identifying Upper Cover Screws
    G06053839Courtesy of NISSAN MOTOR CO., U.S.A.

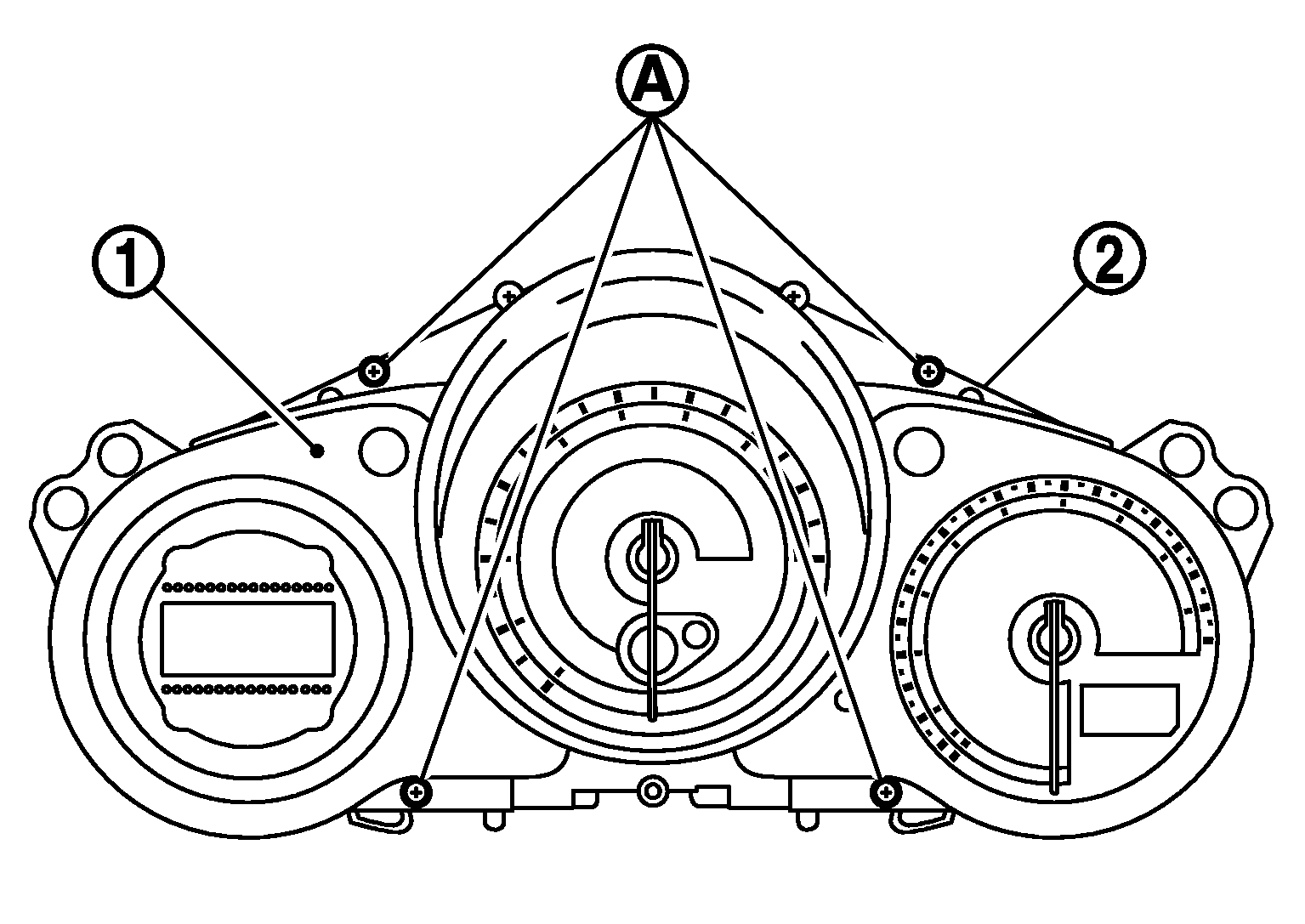

  5. Remove screws (A) and remove front cover (1).
  6. Disengage the tabs and then remove meter housing (2).
    Fig 4: Identifying Remove Meter Housing, Front Cover And Screws
    G06053840Courtesy of NISSAN MOTOR CO., U.S.A.
