METER SYSTEM : System Diagram
METER SYSTEM : System Diagram

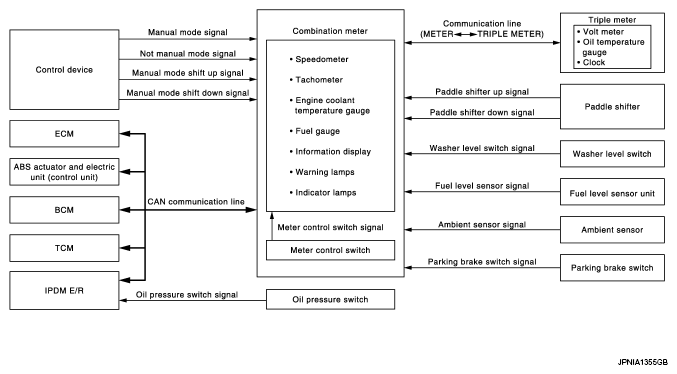

Fig 1: Meter System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
