INFORMATION DISPLAY : Component Parts Location
INFORMATION DISPLAY : Component Parts Location

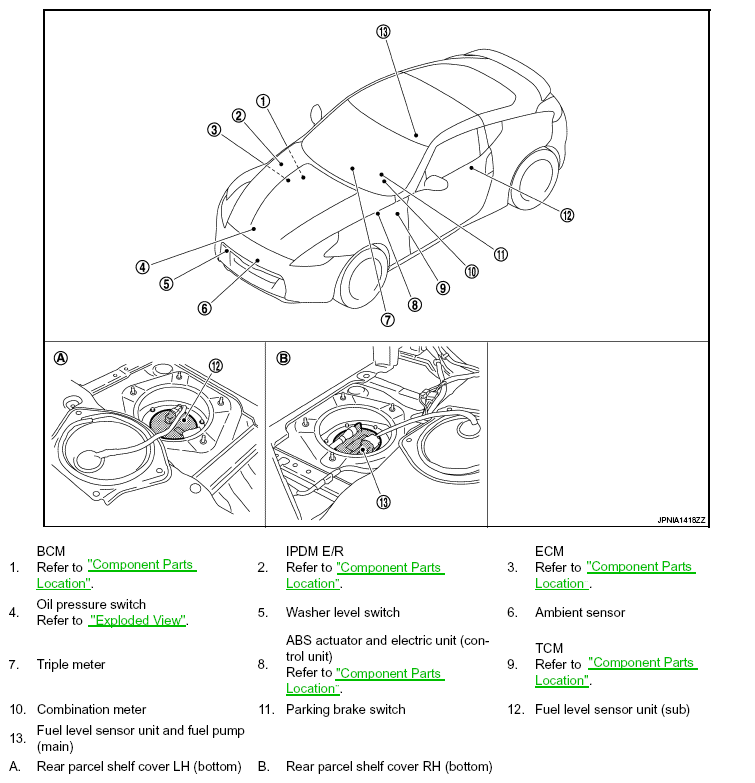

Fig 1: Identifying Information Display Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
