Operation Procedure

Turn ignition switch OFF.
While pressing the trip reset switch (1), turn ignition switch ON.
Make sure that the trip meter displays "0000.0".
Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

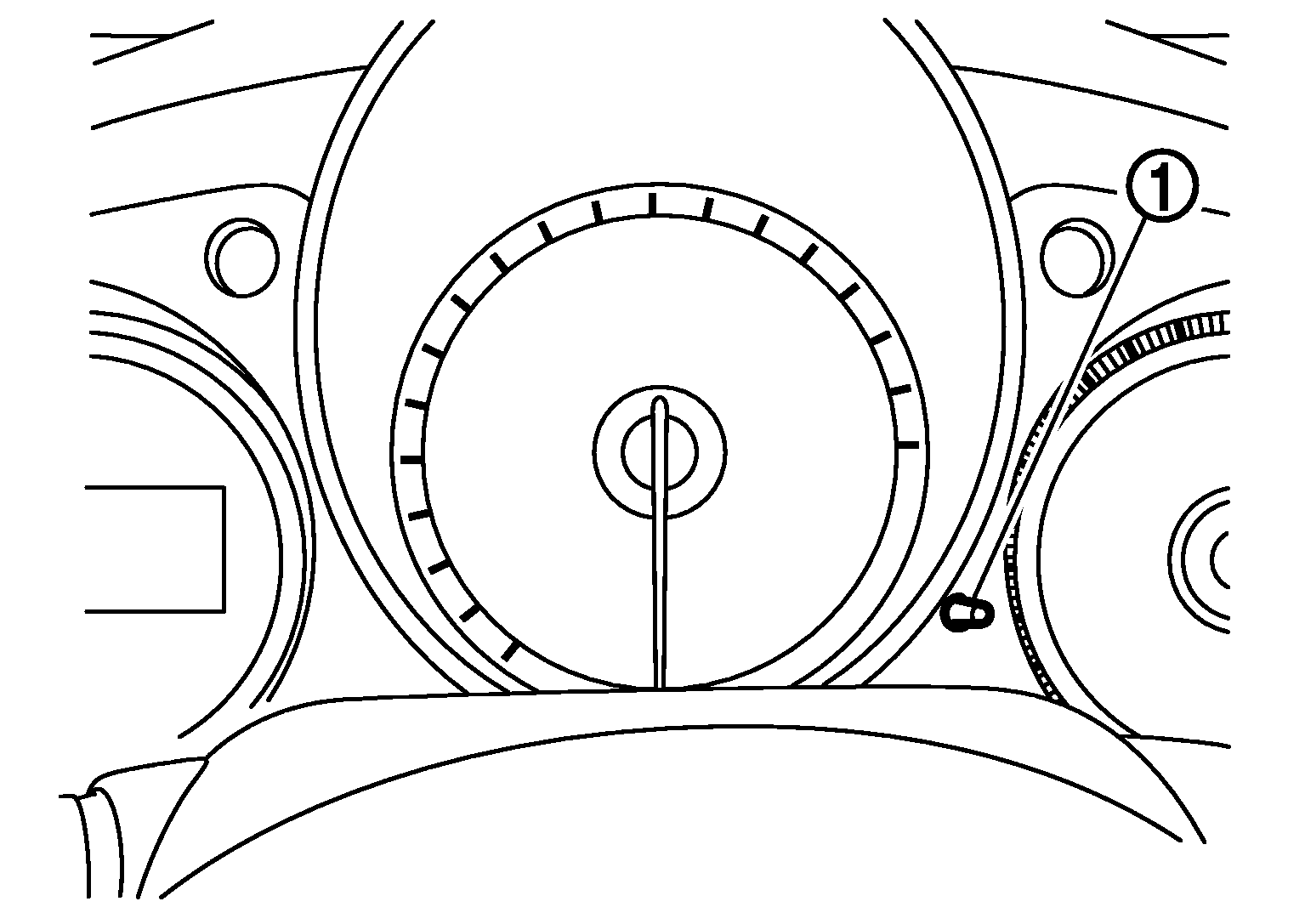

Fig 1: Identifying Trip Reset Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
The unified meter control unit is turned to self-diagnosis mode.
- The segment dots of the information display LCD (1) blink alternately.
- Water temperature gauge and fuel gauge return to zero, simultaneously.

  Fig 2: Identifying Information Display LCD
  Courtesy of NISSAN MOTOR CO., U.S.A.
- The fuel gauge (1) blink alternately.
- The engine coolant temperature gauge (2) blink alternately.

  Fig 3: Identifying Engine Coolant Temperature Gauge And Fuel Gauge
  Courtesy of NISSAN MOTOR CO., U.S.A.
  NOTE:
  - Check combination meter power supply and ground circuit when the self-diagnosis mode of the combination meter does not start. Replace combination meter if abnormal.
  - If any of the segments are not displayed, replace combination meter.
Each meter activates by pressing the trip reset switch.

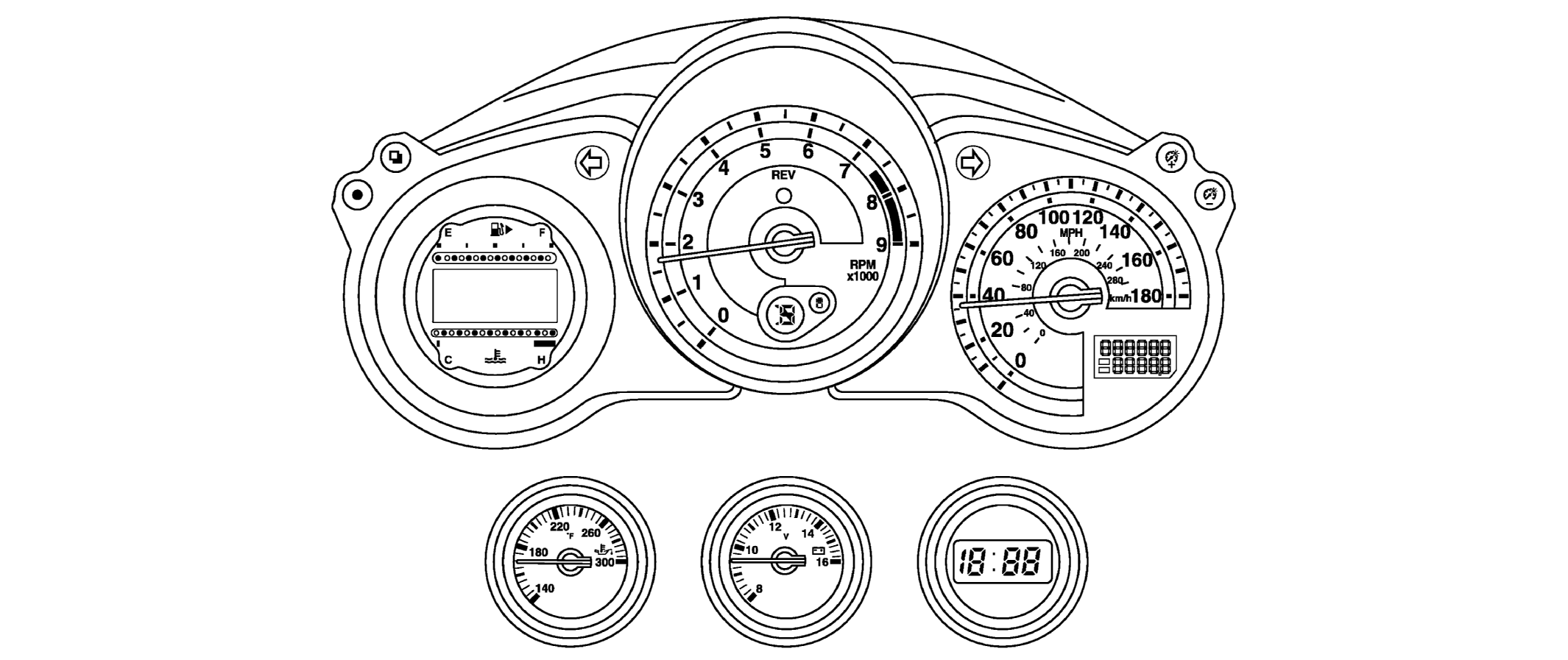

Fig 4: Identifying Combination Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
- If any of the meters or gauges are not activated, replace combination meter.
- The figure is reference.
