Wiring Diagram - METER -

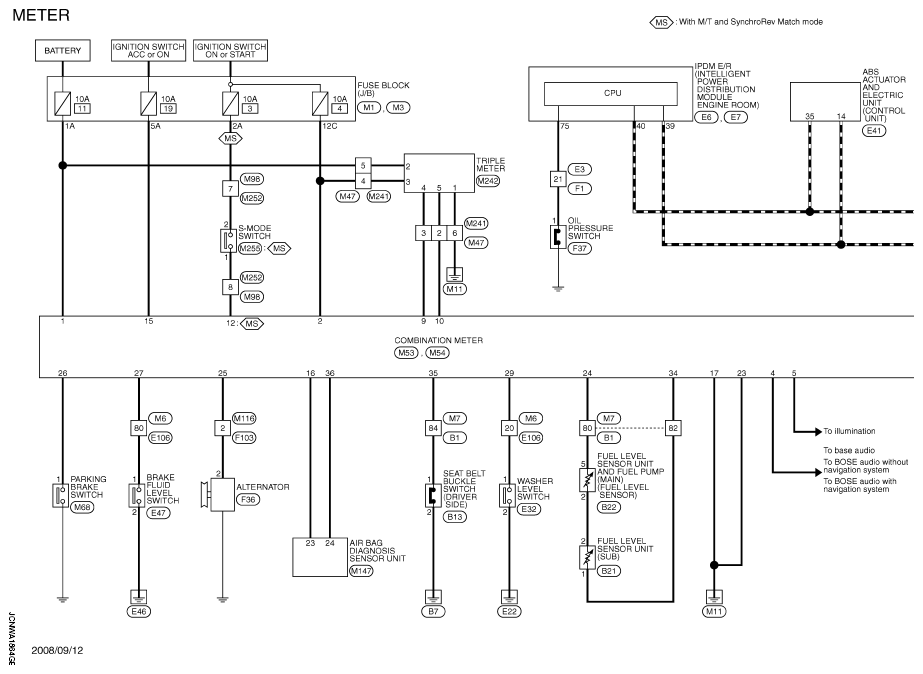

Fig 1: Combination Meter - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

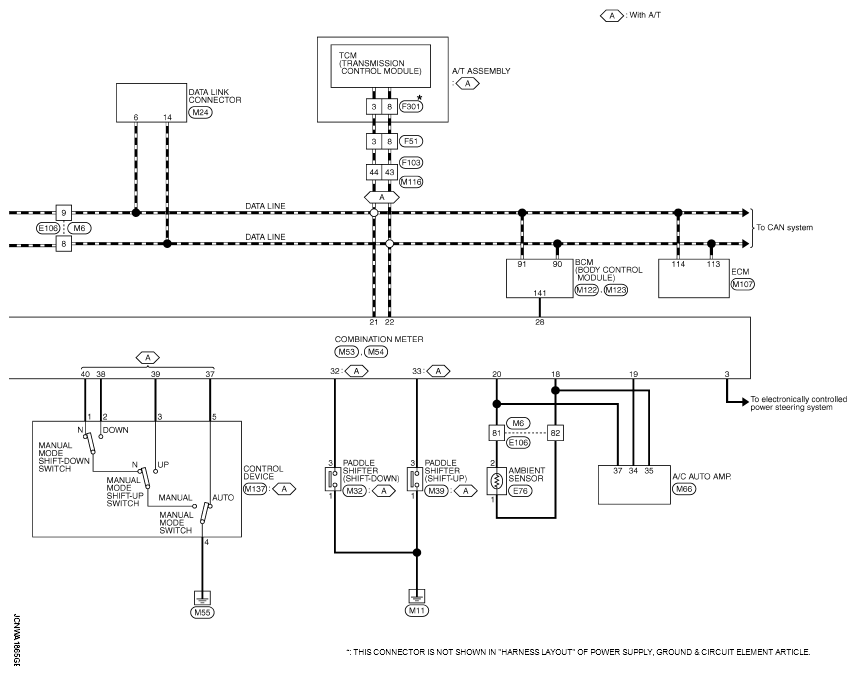

Fig 2: Combination Meter - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

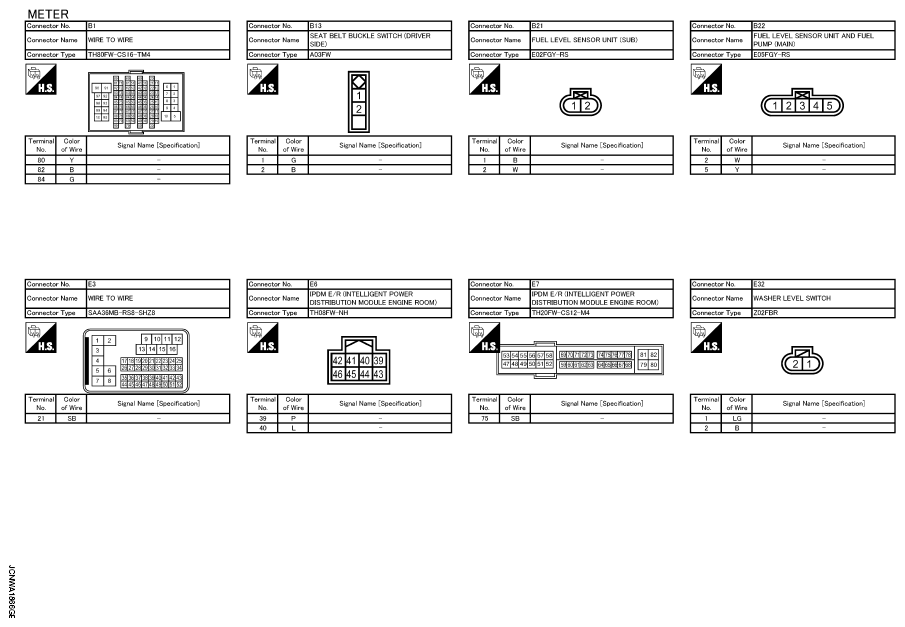

Fig 3: Identifying Meter Connectors (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

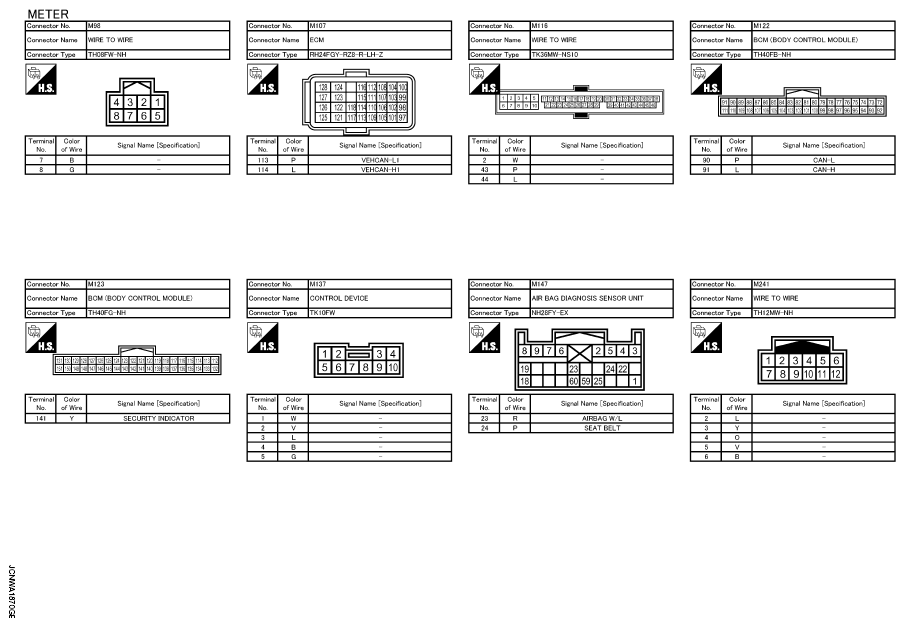

Fig 4: Identifying Meter Connectors (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

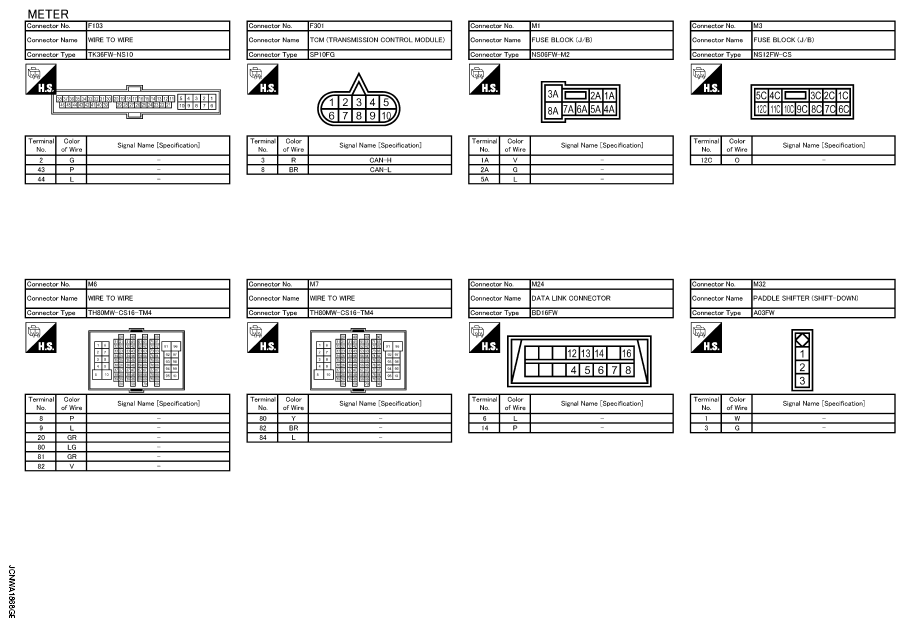

Fig 5: Identifying Meter Connectors (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

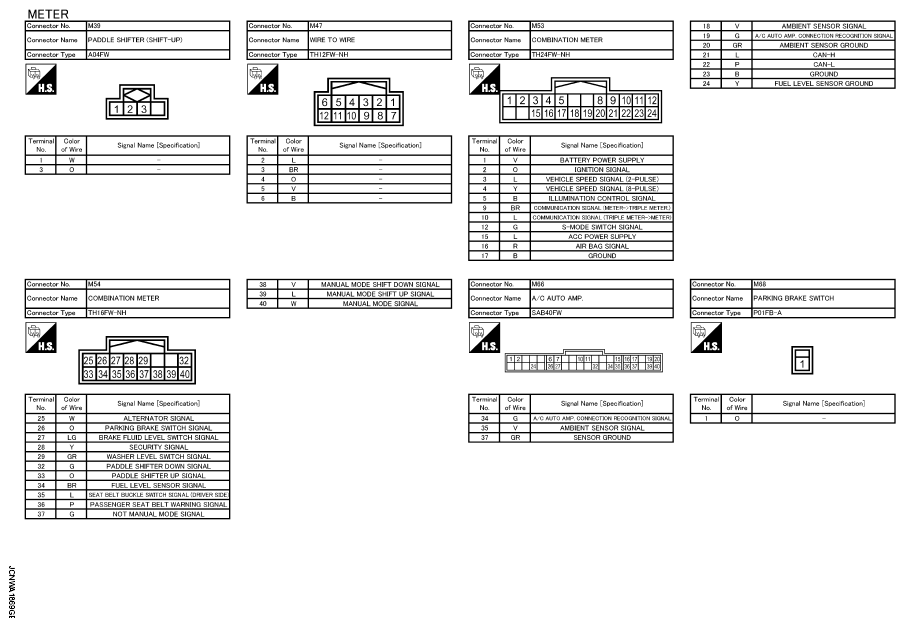

Fig 6: Identifying Meter Connectors (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

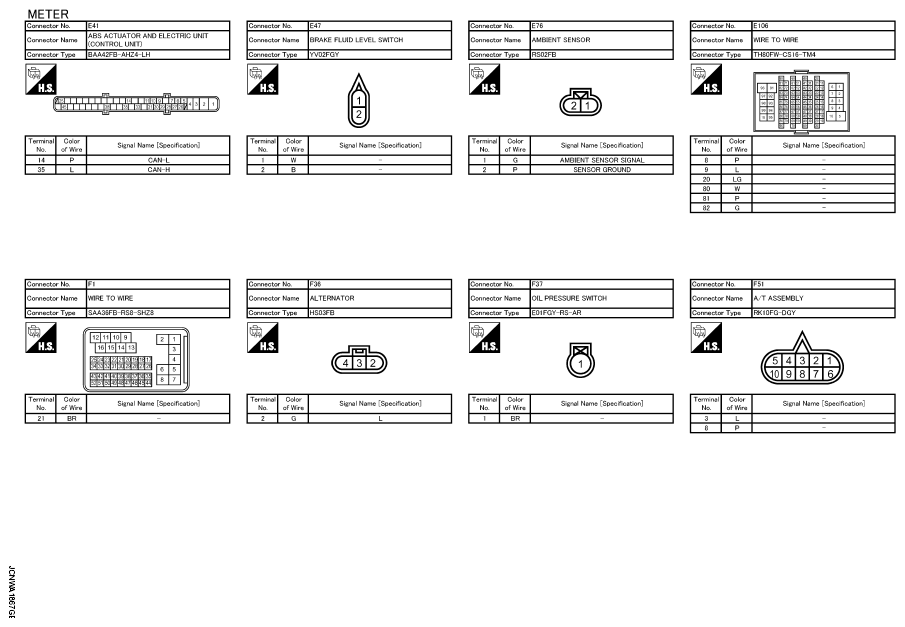

Fig 7: Identifying Meter Connectors (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

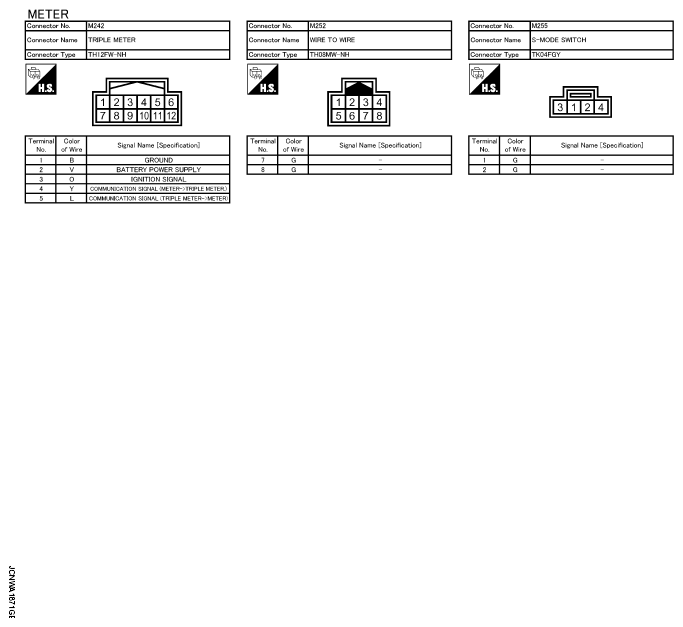

Fig 8: Identifying Meter Connectors (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
