Disassembly and Assembly: Disassembly

  1. Open the console lid.
  2. Pull up console tray assembly (1), and then remove console tray assembly from center console assembly (2).

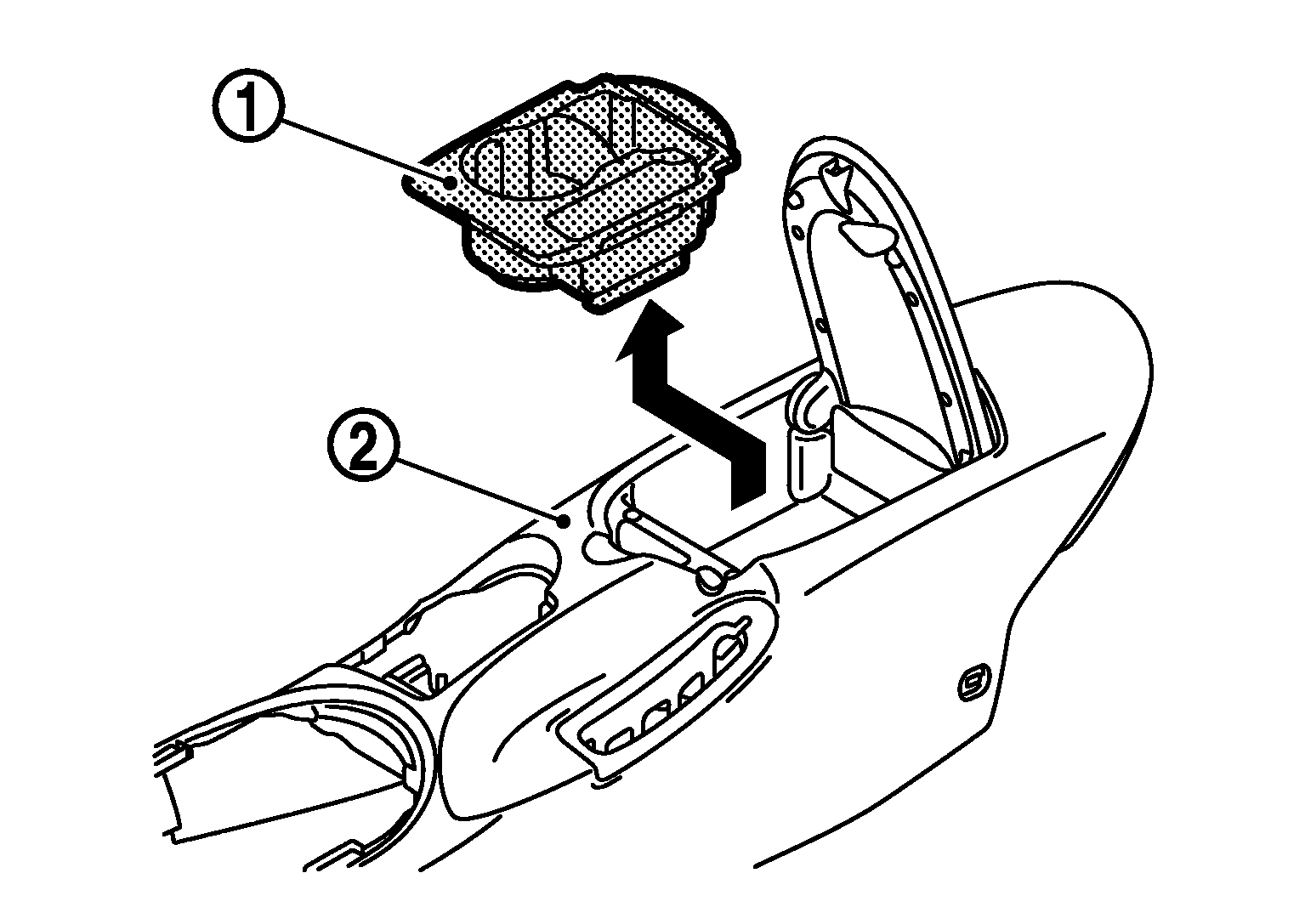

    Fig 1: Identifying Console Tray Assembly And Center Console Assembly
    G06053283Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove inside key antenna.
    • Disconnect inside key antenna harness connector.
    • Remove inside key antenna (1) fixing screws (A).
    • Pull up inside key antenna from center console assembly (2).

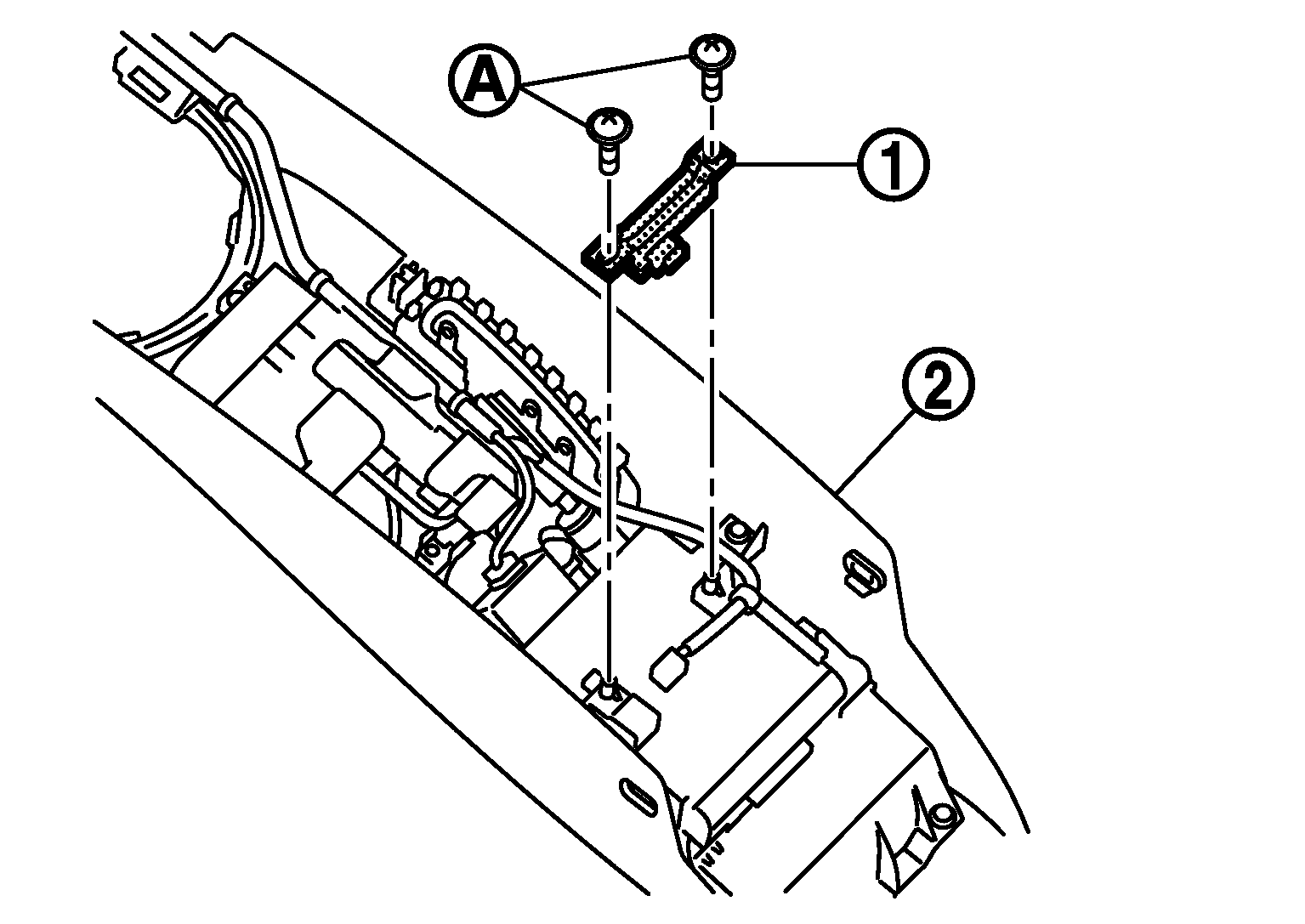

      Fig 2: Identifying Inside Key Antenna And Fixing Screws
      G06053284Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove console sub-harness.
    • Disconnect harness connectors (A).
    • Remove console sub-harness (1) fixing harness clips from center console assembly (2).
      Fig 3: Identifying Console Sub-Harness And Center Console Assembly
      G06053285Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove console pocket assembly.
    • Remove console pocket assembly (1) fixing screws.
    • Pull up console pocket assembly from center console assembly (2).

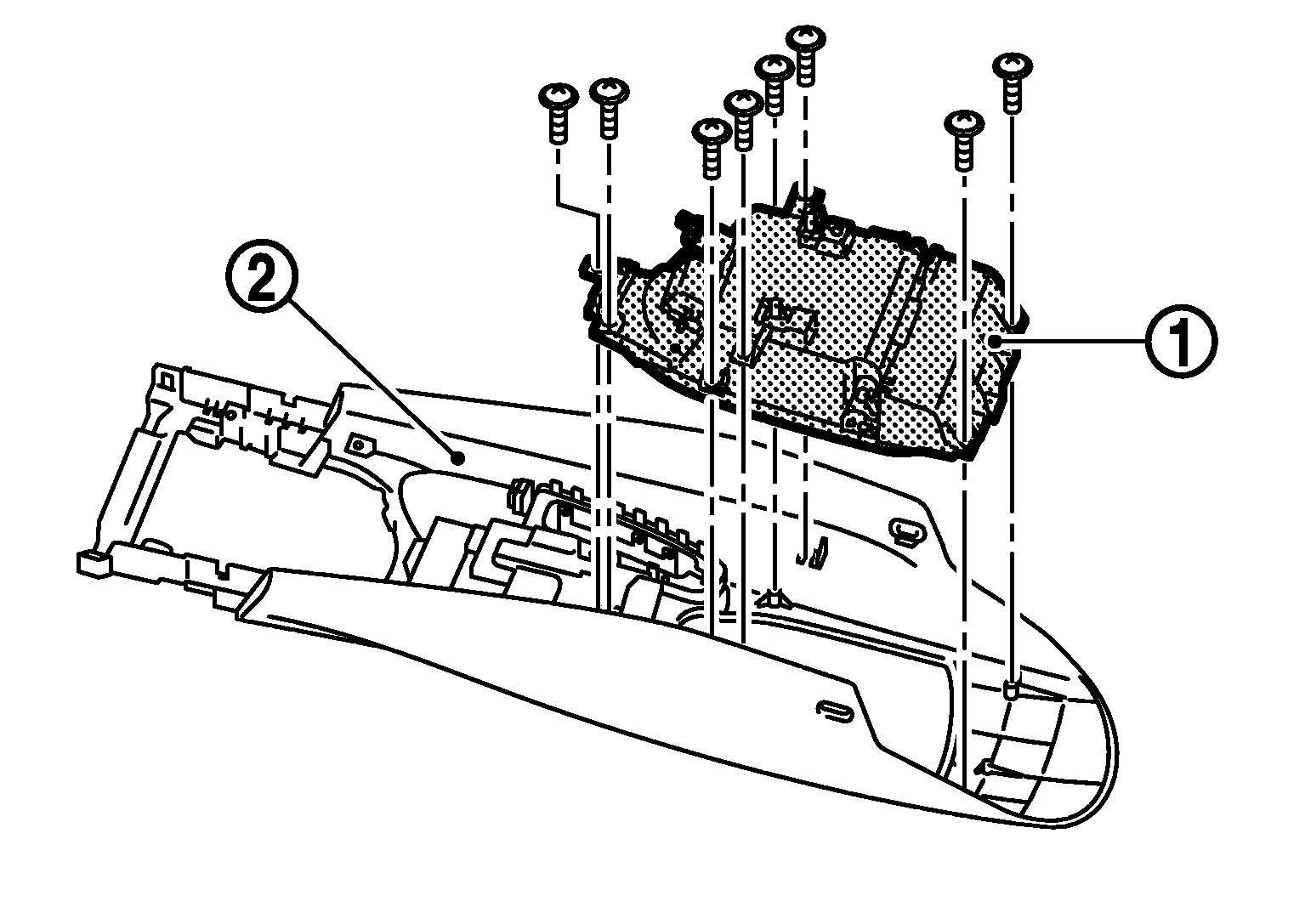

      Fig 4: Identifying Console Pocket Assembly And Center Console Assembly
      G06053286Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove the following parts after removing console pocket assembly (4).
