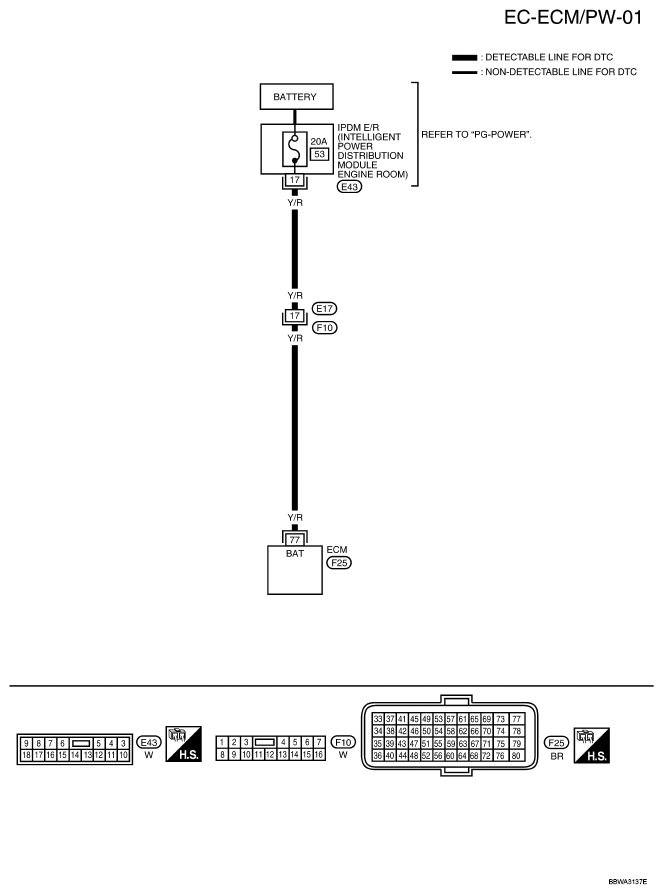

DTC P0603 ECM Power Supply: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 77 | Y/R | Power supply for ECM (Back-up) | [Ignition switch: OFF] | BATTERY VOLTAGE (11 - 14V) |
