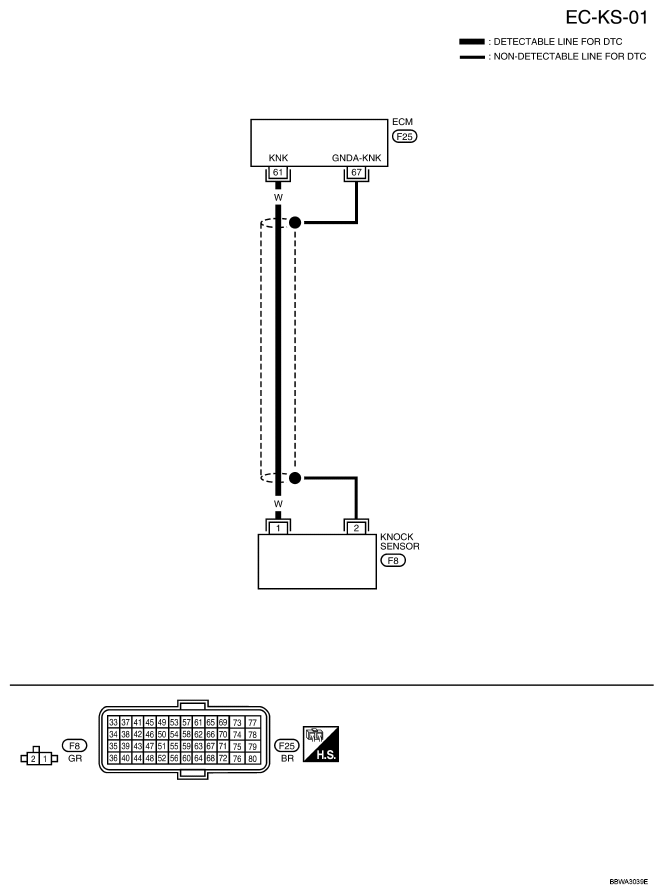

DTC P0327, P0328 KS: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 61 | W | Knock sensor | [Engine is running]
|
Approximately 2.5V |
| 67 | - | Sensor ground (Knock sensor) | [Engine is running]
|
Approximately 0V |
