Bank 1

WARNING: This page is about a different variant/trim than selected.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

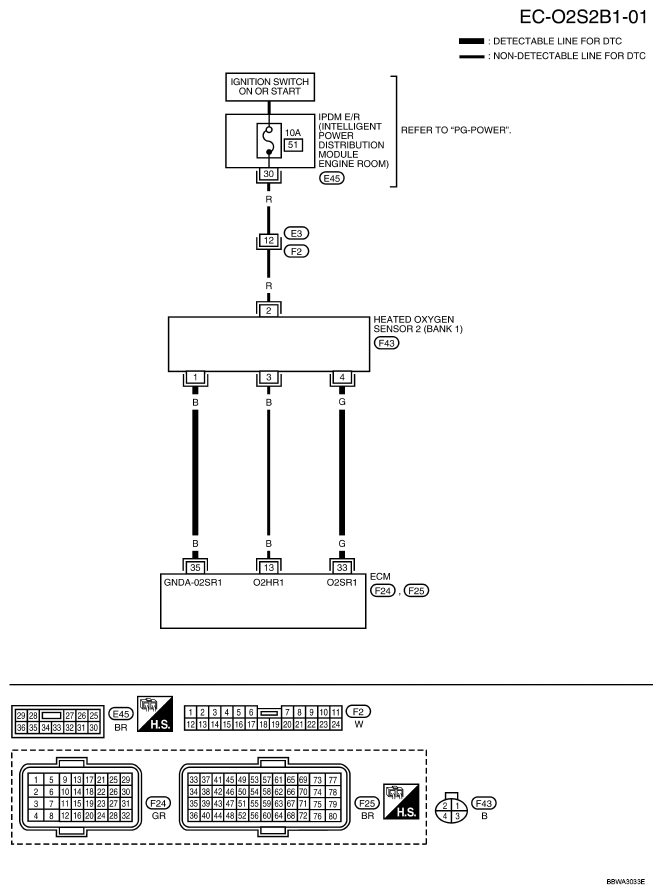

Fig 1: EC-O2S2B1-01 - Wiring Diagram
G04925911Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
13 B Heated oxygen sensor 2 heater (Bank 1) [Engine is running]
  • Engine speed: Below 3, 600 RPM after the following conditions are met.
    • Engine: After warming up
    • Keeping the engine speed between 3, 500 and 4, 000 RPM for 1 minute and at idle for 1 minute under no load.
G04925765Courtesy of NISSAN MOTOR CO., U.S.A.
[Ignition switch: ON]
  • Engine stopped

[Engine is running]
  • Engine speed: Above 3, 600 RPM.
 BATTERY VOLTAGE (11 - 14V)
33 G Heated oxygen sensor 2 (Bank 1) [Engine is running]
  • Revving engine from idle to 3, 000 RPM quickly after the following conditions are met.
    • Engine: After warming up
    • Keeping the engine speed between 3, 500 and 4, 000 RPM for 1 minute and at idle for 1 minute under no load.
 0 - Approximately 1.0V
35 B Sensor ground (Heated oxygen sensor 2) [Engine is running]
  • Warm-up condition
  • Idle speed
 Approximately 0V
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

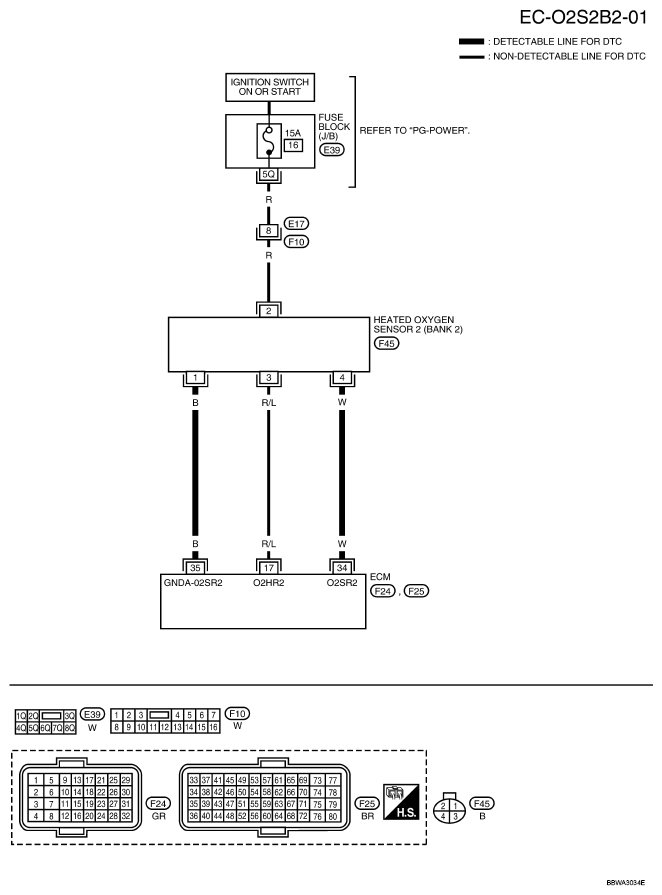

Fig 2: EC-O2S2B2-01 - Wiring Diagram
G04925913Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART

TERMINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage)
17 R/L Heated oxygen sensor 2 heater (Bank 2) [Engine is running]
  • Engine speed: Below 3, 600 RPM after the following conditions are met.
    • Engine: After warming up
    • Keeping the engine speed between 3, 500 and 4, 000 RPM for 1 minute and at idle for 1 minute under no load.
G04925765Courtesy of NISSAN MOTOR CO., U.S.A.
[Ignition switch: ON]
  • Engine stopped

[Engine is running]
  • Engine speed: Above 3, 600 RPM.
 BATTERY VOLTAGE (11 - 14V)
34 W Heated oxygen sensor 2 (Bank 2) [Engine is running]
  • Revving engine from idle to 3, 000 RPM quickly after the following conditions are met.
    • Engine: After warming up
    • Keeping the engine speed between 3, 500 and 4, 000 RPM for 1 minute and at idle for 1 minute under no load.
 0 - Approximately 1.0V
35 B Sensor ground (Heated oxygen sensor 2) [Engine is running]
  • Warm-up condition
  • Idle speed
 Approximately 0V
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
