DTC P0117, P0118 ECT Sensor
>>
Wiring Diagram
DTC P0117, P0118 ECT Sensor: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

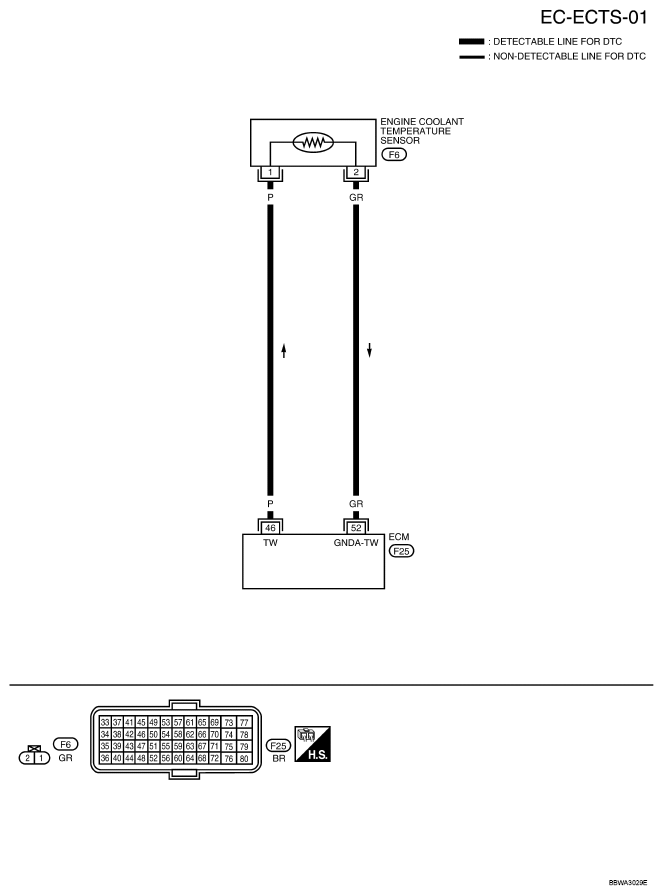

Fig 1: EC-ECTS-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
