Section 7 (Engine Control System - DTCS U1000 To P0153 (Qr25DE))
>>
DTC P0112, P0113 IAT Sensor
>>
Wiring Diagram
DTC P0112, P0113 IAT Sensor: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

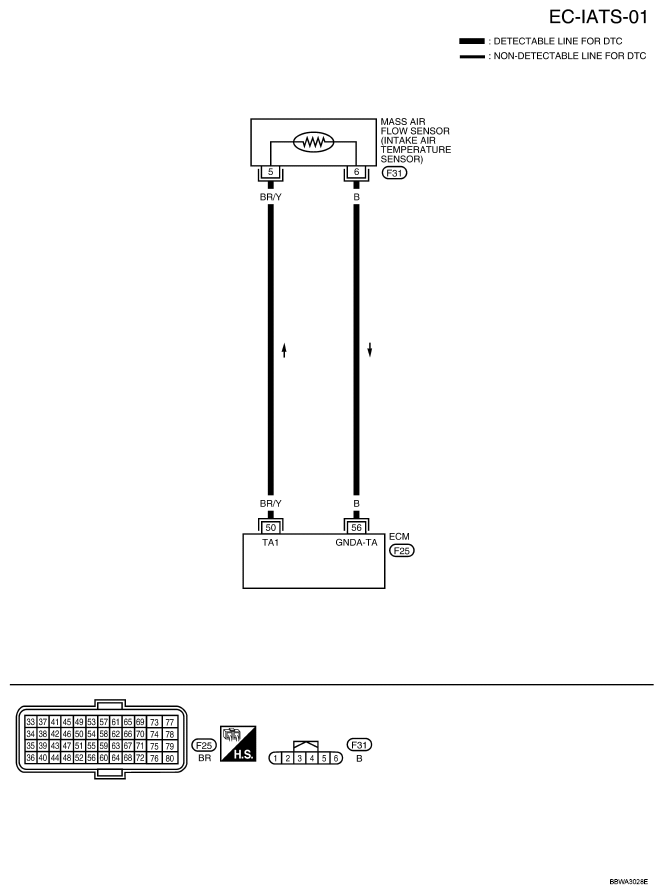

Fig 1: EC-IATS-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
