Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

WARNING: This page is about a different variant/trim than selected.

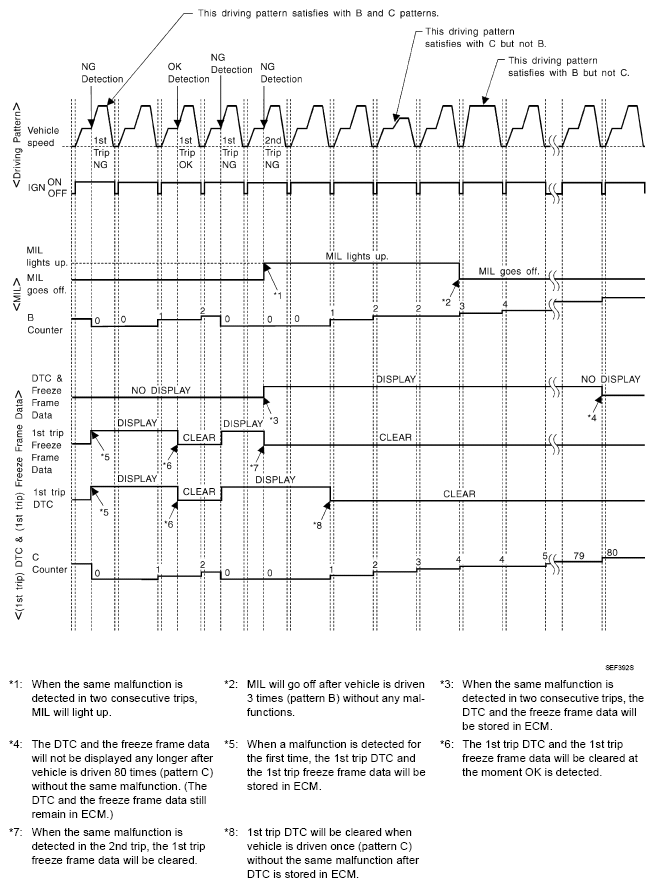

Fig 1: Relationship Between MIL, DTC, 1St Trip DTC - Driving Patterns (Misfire)

Courtesy of NISSAN MOTOR CO., U.S.A.
