Section 6 (Engine Control System - Introduction (Qr25DE))
>>
Evaporative Emission System
>>
Removal and Installation
>>
EVAP Canister
EVAP Canister
WARNING:
This page is about a different variant/trim than selected.
Tighten EVAP canister as shown in the figure.

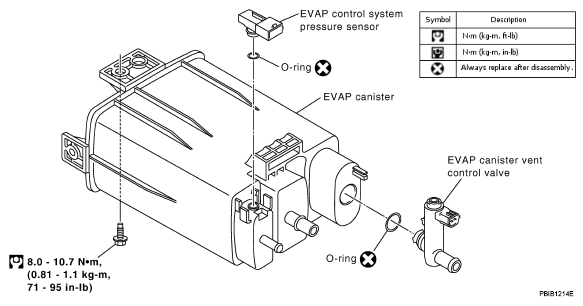

Fig 1: EVAP Canister Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
