Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

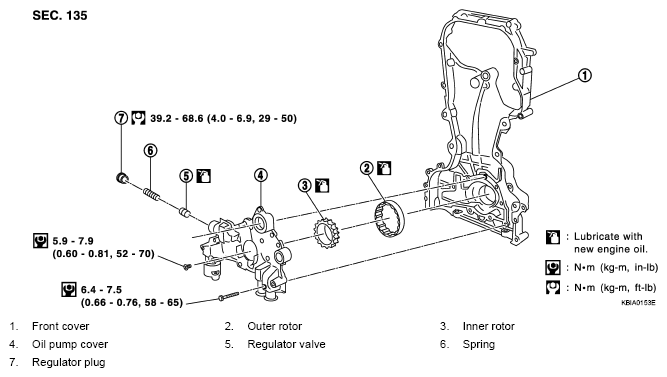

Fig 1: Oil Pump Replacement Components With Torque Specifications
G04924996Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before installation, apply new engine oil to the parts as instructed in the figure above.
