Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove reverse output gear (1).

Fig 1: Identifying Reverse Output Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

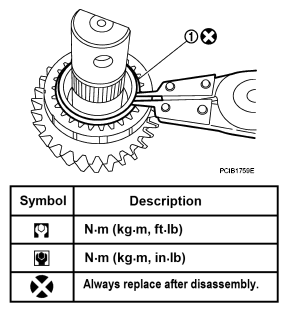

Remove snap ring (1).

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove reverse bulk ring (1) and return spring (2).

Fig 3: Identifying Reverse Bulk Ring And Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

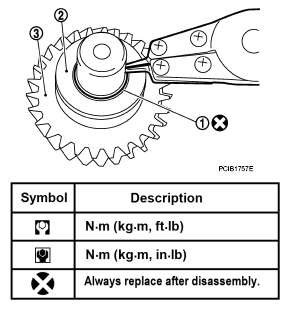

Remove snap ring (1), lock washer (2), reverse input gear (3) and washer.

Fig 4: Identifying Snap Ring, Lock Washer And Input Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearings (1) from reverse idler shaft.
Remove washer from reverse idler shaft.

Fig 5: Identifying Needle Bearings From Idler Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
