Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

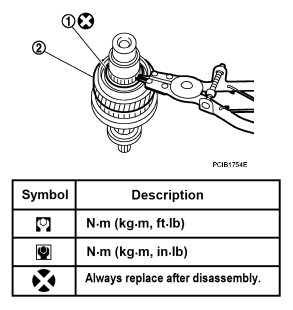

Remove snap ring (1).

Fig 1: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the suitable tools (A) onto input shaft rear bearing (1), and remove input shaft rear bearing (1) from input shaft.

Fig 2: Identifying Suitable Tools On Input Shaft Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove washer (1), 6th input gear (2) and 5th-6th synchronizer assembly (3).
Remove needle bearing.

Fig 3: Identifying Washer, 6th Input Gear And 5th-6th Synchronizer Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring (1), washer and 5th input gear (2).
Remove washer.

Fig 4: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring (1), washer, 4th input gear (2) and 3rd-4th synchronizer assembly (3).

Fig 5: Identifying 4th Input Gear And 3rd-4th Synchronizer Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring (1), washer and 3rd input gear (2).

Fig 6: Removing Snap Ring, Washer And 3rd Input Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove input shaft front bearing (1) from input shaft using a suitable tool.

Fig 7: Identifying Input Shaft Front Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
