Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

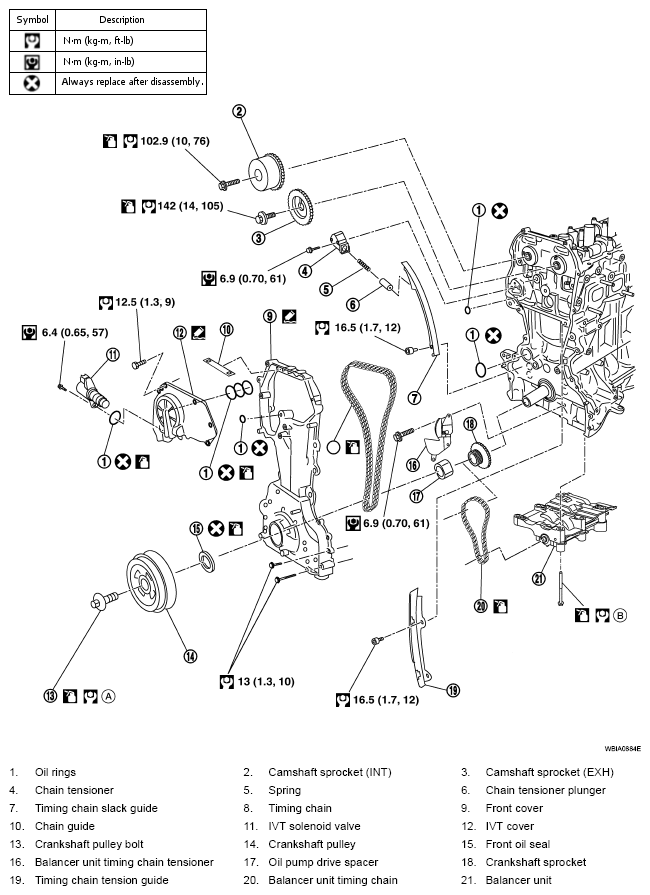

Fig 1: Timing Chain Components With Torque Specifications
G04924821Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Apply new engine oil to parts marked in illustration before installation.
