Cylinder Head

WARNING: This page is about a different variant/trim than selected.
CYLINDER HEAD SPECIFICATIONS

Unit: mm (in)

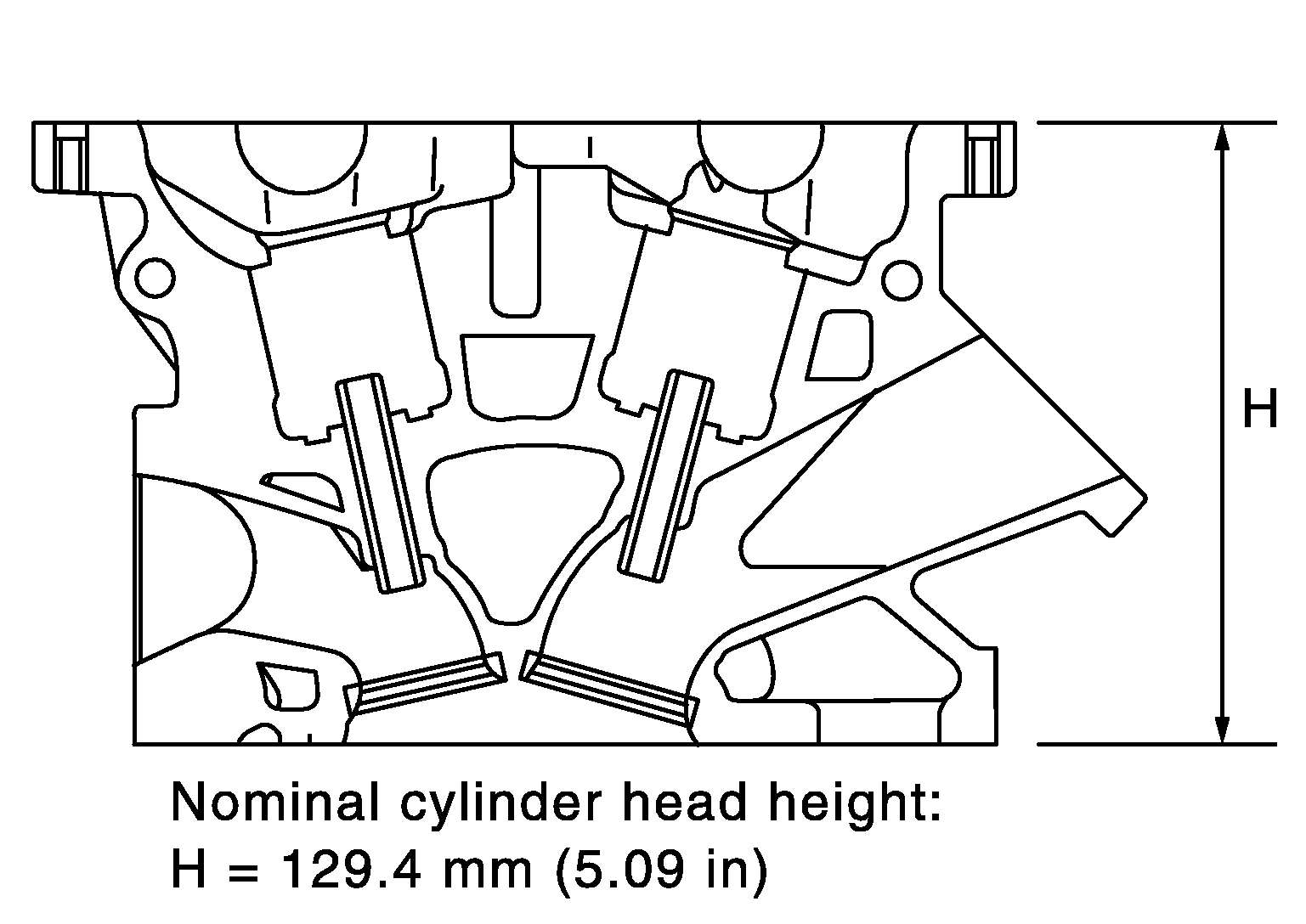

G04893937Courtesy of NISSAN MOTOR CO., U.S.A.
Description Limit
Head surface distortion 0.1 (0.004)
