Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

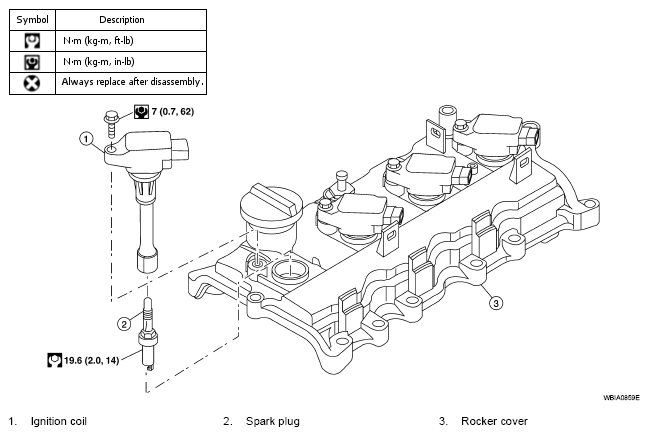

Fig 1: Ignition Coil Components With Torque Specifications

G04924772

Courtesy of NISSAN MOTOR CO., U.S.A.
