Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

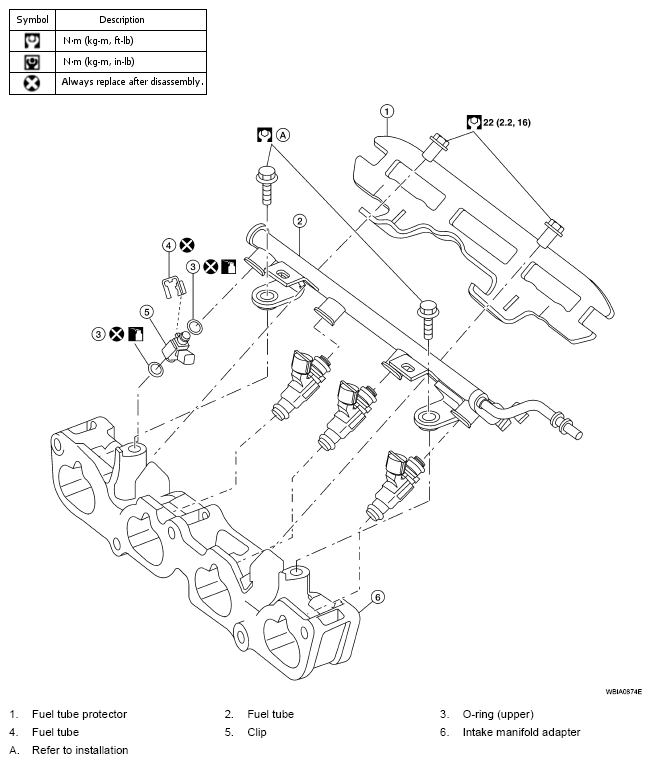

Fig 1: Fuel Injector And Fuel Tube Components With Torque Specifications
G04924777Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Apply new engine oil to parts before installing the parts, as shown above.
  • Do not remove or disassemble parts unless instructed as shown in the figure.
