Checking Drive Belts

WARNING: This page is about a different variant/trim than selected.

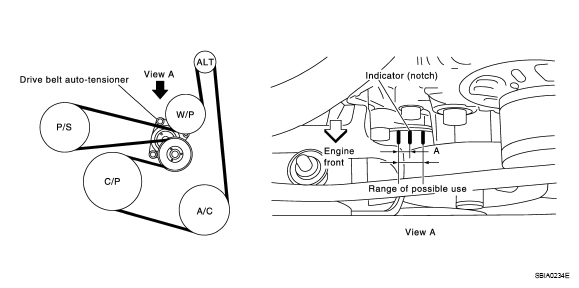

Fig 1: Drive Belt Routing Diagram

G04885684

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Inspect the drive belt only when the engine is stopped.

NOTE: On vehicles not equipped with A/C, there is an idler pulley in the position for the drive belt routing.

Make sure that the stamp mark of drive belt auto-tensioner is within the usable range.
NOTE:
- Check the drive belt auto-tensioner indicator (notch) when the engine is cold.
- When the new drive belt is installed, the range of possible use should be as shown.
- Visually check entire belt for wear, damage or cracks.
- If the indicator is out of allowable use range or belt is damaged, replace the belt.
