Main Bearing Selection Table (No.2, and 4 journals)

WARNING: This page is about a different variant/trim than selected.

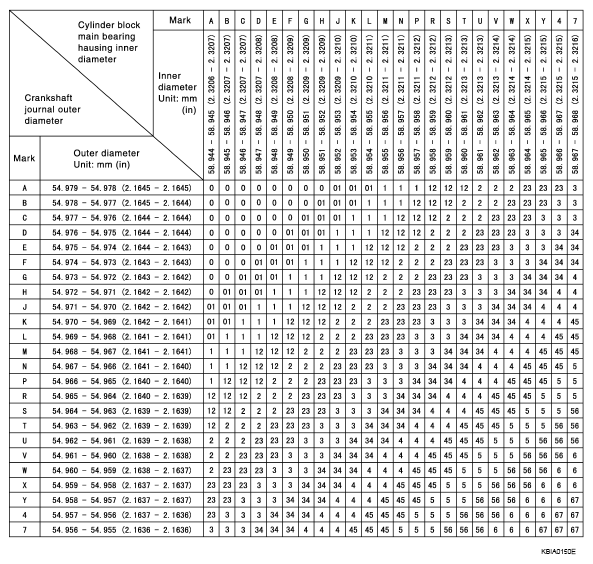

Fig 1: Main Bearing Selection Chart (No.2, And 4 Journals)
G04885894Courtesy of NISSAN MOTOR CO., U.S.A.
