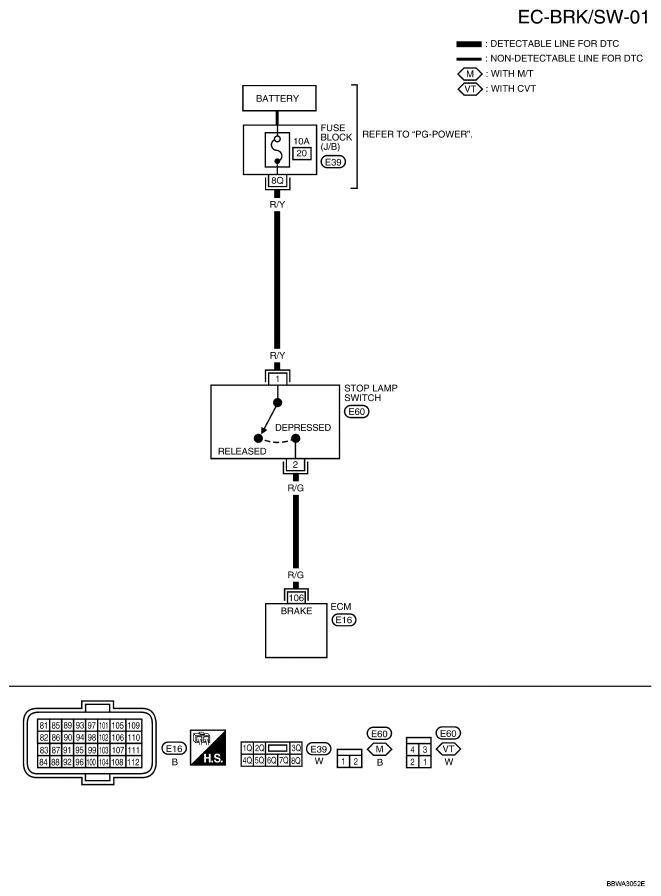

DTC P1805 Brake Switch: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 106 | R/G | Stop lamp switch | [Ignition switch: OFF]
|
Approximately 0V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) |
