DTC P1217 Engine Over Temperature: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

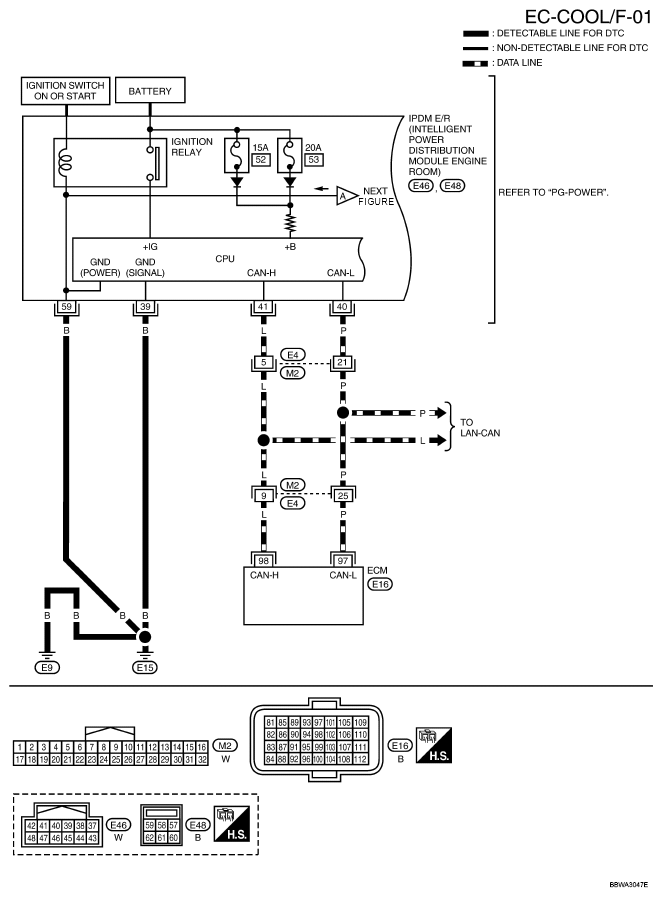

Fig 1: EC-COOL/F-01 - Wiring Diagram
G04926136Courtesy of NISSAN MOTOR CO., U.S.A.

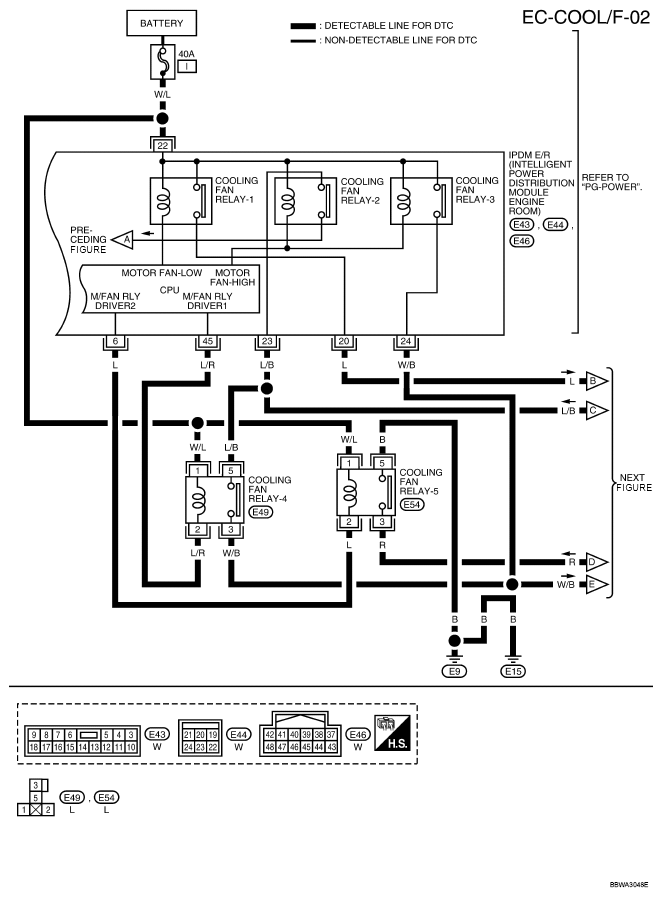

Fig 2: EC-COOL/F-02 - Wiring Diagram
G04926137Courtesy of NISSAN MOTOR CO., U.S.A.

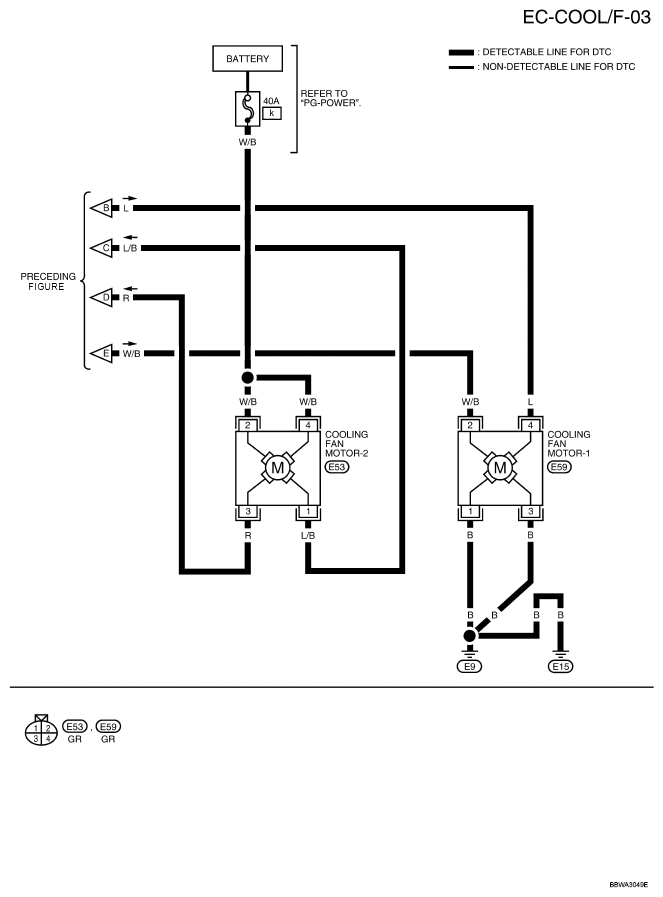

Fig 3: EC-COOL/F-03 - Wiring Diagram
G04926138Courtesy of NISSAN MOTOR CO., U.S.A.
