Front Wiper And Washer System
>>
Washer Tube Layout
Washer Tube Layout

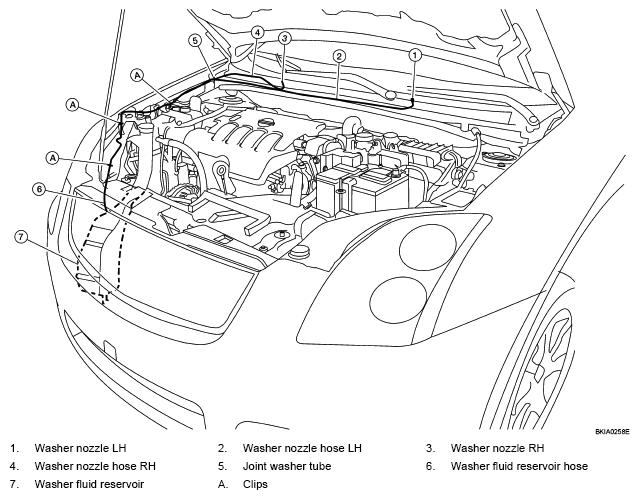

Fig 1: Identifying Washer Tube Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
