Front Wiper And Washer System: Schematic

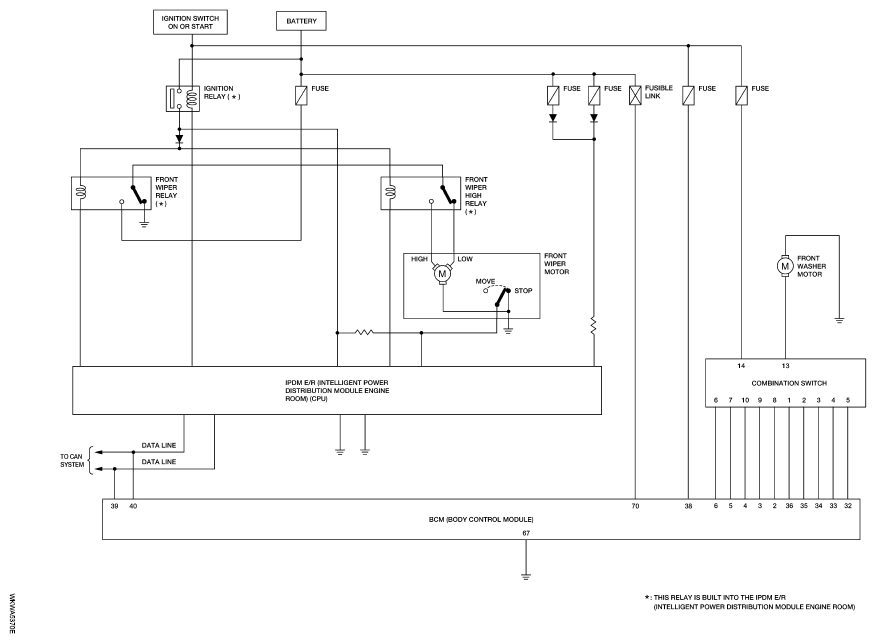

Fig 1: Front Wiper And Washer System - Schematic Diagram

G04928476

Courtesy of NISSAN MOTOR CO., U.S.A.
